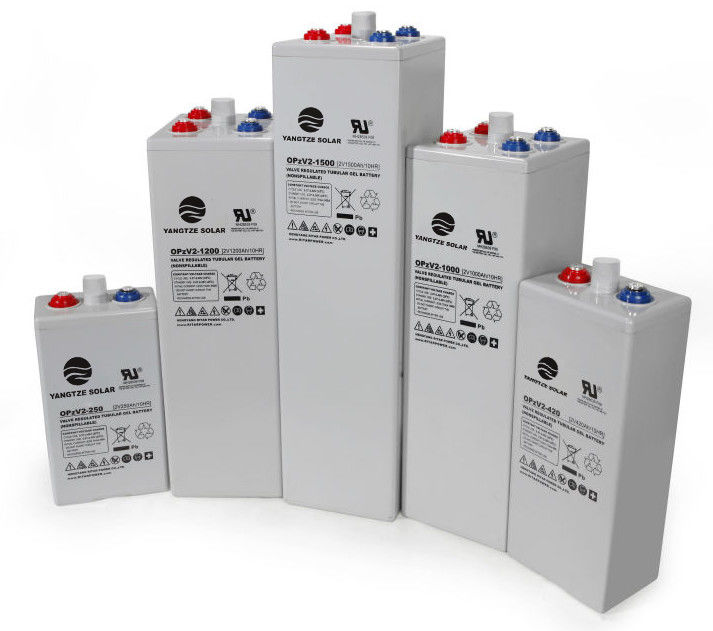

2V 800Ah OPZV OPZS Tubular Battery For Wind Solar Energy System

Name: 2V 800Ah OPZV OPZS Tubular Battery For Wind Solar Energy System
Brand: Yangtze
SKU: OPZV-800
Rating: 4.5 (185 reviews)

Product Details

Place of Origin: China

Brand Name: Yangtze

Certification: CE/TUV/ISO/ROHS/MSDS

Model Number: OPZV-800

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiable

Packaging Details: Pallet+Carton box

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union,Credit Card

Supply Ability: 5000 units/week

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                800Ah OPZV Tubular Battery, OPZS Tubular Battery, Wind Solar Energy System OPZS Battery


Container Material:	ABS	Recombination Efficiency:	≥99%
Float Voltage:	2.25-2.35V/cell	Operating Temperature Range:	–40℃ To +60℃
Capacity Range:	200Ah-3000Ah	Self Discharge:	≤3%/month
Design Life:	30 Years	Impedance:	≤0.5mΩ

Container Material:	ABS
Recombination Efficiency:	≥99%
Float Voltage:	2.25-2.35V/cell
Operating Temperature Range:	–40℃ To +60℃
Capacity Range:	200Ah-3000Ah
Self Discharge:	≤3%/month
Design Life:	30 Years
Impedance:	≤0.5mΩ

2V 800Ah OPZV OPZS Tubular Battery For Wind Solar Energy System

Product Description:

OPZV OPZS tubular batteries are designed to provide the highest recombination efficiency and design life. With a recombination efficiency of ≥99%, a design life of 30 years, and a container material of ABS, these batteries are built to last. The operating temperature range is –40℃ To +60℃, and the float voltage of the battery is 2.25-2.35V/cell. OPZV OPZS tubular batteries are the perfect choice for reliable, long-term energy storage.

2V 800Ah OPZV OPZS Tubular Battery For Wind Solar Energy System 0

1. Functional Parameter		5. Environment Temperature
Nominal Voltage	2V	Discharge Temperature	-40~60℃
Nominal Capacity @C10 to 1.8V/cell	800Ah	Charge Temperature	-15~50℃
Designed Floating Life 20℃ (68° F)	20years	Storage Temperature	-15~40℃
2. Rated Capacity at 20℃ (68° F)		6. Inner Resistance & Max . Discharge Current
5 hour rate (138A, 1.75V/cell)	690Ah	Fully Charged battery at 20℃ (68° F)	0.46mΩ
3 hour rate (203A, 1.75V/cell)	609Ah	Max. Discharge Current	2000A (5s)
1 hour rate (454A, 1.60V/cell)	454Ah	Short Circuit Current	4300A
3. Capacity affected by Temperature (10 hour rate)		7. Self-discharge at 20℃ (68° F)
40℃ (104° F)	102%	Capacity after 3 month storage	94%
25℃ (77° F)	100%	Capacity after 6 month storage	88%
0℃ (32° F)	90%	Capacity after 9 month storage	82%
-15℃ (5° F)	70%	Capacity after 12 month storage	76%
4. Dimension and Weight		8. Constant voltage charging at 20℃ (68° F)
Length	191mm	Cyclic use	2.35~2.40V
Width	210mm	Maximum charging current	160A
Height	646mm	Temperature compensation	-5mV/℃
Total Height	681mm	Float use	2.25~2.29V
Reference Weight	58.5kg	Temperature compensation	-3mV/℃

2V 800Ah OPZV OPZS Tubular Battery For Wind Solar Energy System 1

2V 800Ah OPZV OPZS Tubular Battery For Wind Solar Energy System 6

Features:

Product Name: OPZV OPZS
Float Voltage: 2.25-2.35V/cell
Container Material: ABS
Design Life: 30 Years
Capacity Range: 200Ah-3000Ah
Recombination Efficiency: ≥99%
