Product Description:

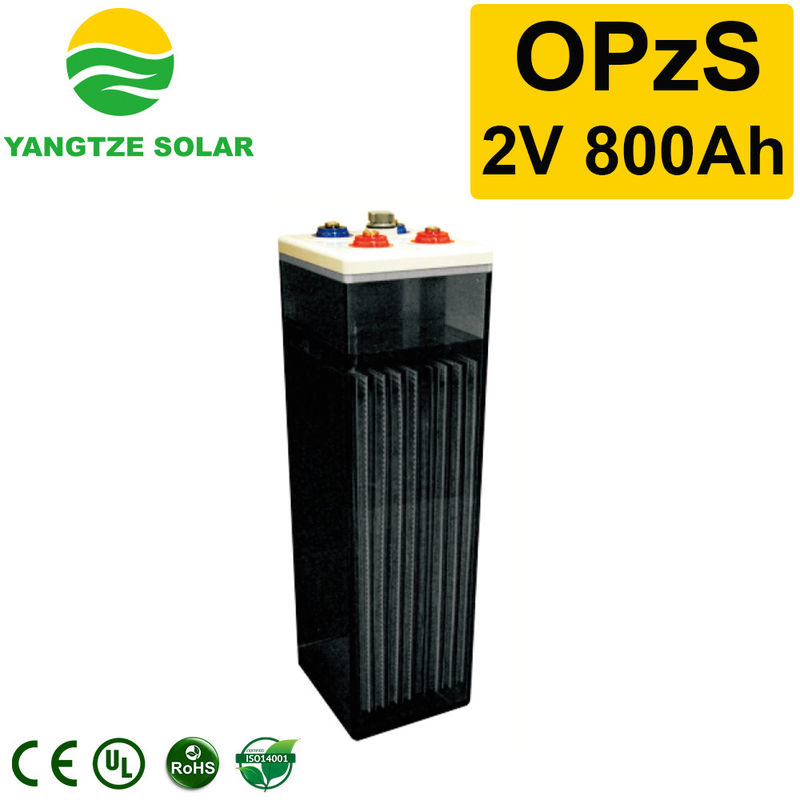

OPZS Tubular Battery 100- 3000Ah with ABS Container
The OPZV OPZS is a tubular battery with a capacity range of 200Ah to 3000Ah, providing reliable and efficient power for a variety of applications. It features an impressive self-discharge rate of 3% per month, an impedance of 0.5mΩ, and an impressive design life of 30 years. The container material is made of ABS for superior durability and strength. The OPZV OPZS is the perfect choice for any project requiring a tubular battery with a high capacity rating.
The OPZV OPZS battery is ideal for use in off-grid and residential solar energy systems, as well as other applications requiring a reliable and powerful battery solution. It features a low self-discharge rate, low impedance, and an incredibly long design life, all of which combine to make the OPZV OPZS a superior choice for energy storage.
The OPZV OPZS tubular battery is a top-of-the-line solution for any project requiring a high-capacity, long-lasting, and reliable power source. With its impressive self-discharge rate, low impedance, and ABS container material, the OPZV OPZS is an unbeatable choice for any application.
| 1. Functional Parameter |
5. Environment Temperature |
| Nominal Voltage |
2V |
Discharge Temperature |
-15~55℃ |
| Nominal Capacity (10 hour rate) |
800Ah |
Charge Temperature |
-0~45℃ |
| Designed Floating Life 20℃ (68° F) |
15~20years |
Storage Temperature |
-15~45℃ |
| 2. Rated Capacity at 20℃ (68° F) |
6. Inner Resistance & Max . Discharge Current |
| 5 hour rate (142.1A, 1.75V/cell) |
710.5Ah |
Fully Charged battery at 20℃ (68° F) |
0.35mΩ |
| 3 hour rate (205.6A, 1.75V/cell) |
616.8Ah |
Max. Discharge Current |
6400A (5s) |
| 1 hour rate (456.8A, 1.60V/cell) |
456.8Ah |
  |
  |
| 3. Capacity affected by Temperature (10 hour rate) |
7. Self-discharge at 20℃ (68° F) |
| 40℃ (104° F) |
103% |
Capacity after 3 month storage |
91% |
| 25℃ (77° F) |
100% |
Capacity after 6 month storage |
82% |
| 0℃ (32° F) |
86% |
Capacity after 9 month storage |
73% |
| -15℃ (5° F) |
70% |
Capacity after 12 month storage |
64% |
| 4. Dimension and Weight |
8. Constant voltage charging at 20℃ (68° F) |
| Length |
191mm |
Cyclic use |
2.30~2.40V |
| Width |
210mm |
Maximum charging current |
80A |
| Height |
646mm |
Temperature compensation |
-5mV/℃ |
| Total Height |
701mm |
Float use |
2.23~2.25V |
| Reference Weight Without Electrolyte |
46.9kg |
Temperature compensation |
-3mV/℃ |
Features:
- Product Name: OPZV OPZS
- Container Material: ABS
- Impedance: ≤0.5mΩ
- Design Life: 30 Years
- Float Voltage: 2.25-2.35V/cell
- Capacity Range: 200Ah-3000Ah
