Name: Overload Protection 5KW Hybrid Solar Inverter MPPT 48V With 10 Years Warranty
Brand: Yangtze
SKU: YSPH5K BH
Rating: 4.8 (124 reviews)

Product Details

Place of Origin: China

Brand Name: Yangtze

Certification: CE/TUV/UL/ISO/ROHS/IEC/Inmetro/ETL

Model Number: YSPH5K BH

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: negotiable

Packaging Details: Carton+Pallet

Delivery Time: 10-30 Days

Payment Terms: T/T,L/C,Credit Card

Supply Ability: 10000 units/month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Hybrid Solar Power Inverter 48V, 5KW Hybrid Solar Inverter, MPPT Hybrid Solar Inverter


Storage Temperature:	-25℃~70℃	Output Frequency:	50/60Hz
Efficiency:	99%	Output Voltage:	AC 220/ 230/ 240V
Protection:	Overload, Short Circuit, Over Voltage, Under Voltage	Cooling Method:	Air Cooling/Fan
Product Name:	Solar Inverter	Warranty:	10 Years

Storage Temperature:	-25℃~70℃
Output Frequency:	50/60Hz
Efficiency:	99%
Output Voltage:	AC 220/ 230/ 240V
Protection:	Overload, Short Circuit, Over Voltage, Under Voltage
Cooling Method:	Air Cooling/Fan
Product Name:	Solar Inverter
Warranty:	10 Years

Overload Protection 5KW Hybrid Solar Inverter MPPT 48V With 10 Years Warranty

Technical Parameters:

Model	YSPH3.6K BH	YSPH5K BH	YSPH8K BH	YSPH10K BH	YSPH12K BH
Battery voltage	48V DC		48/160-550V DC
Battery type	Lithium/Lead-acid
INVERTER OUTPUT
Rated power	3600W	5000W	8000W	10000W	12000W
Paralell capability	YES/10 units in parallel max
Surge power	7200VA	10000VA	16000VA	20000VA	24000VA
Efficiency(peak)	98%
Waveform	Pure sine wave
Transfer time	10ms
SOLAR CHARGER
Maximum pv array power	4680W	6500W	10400W	13000W	15600W
MPPT range	200-650VDC
Maximum pv array open circuit voltage	800VDC
Numbers of mppts/ trackers	1/1
Maximum solar charge current	90A	120A	190A	210A	240A
Maximum efficiency	96%
AC CHARGER
Charge Current	60A		80A
AC Input Voltage	220/230/240/380/400/415 VAC
Current Harmonic Distortion	THD<3%(Linear load<1.5%)
Frequency Range	50Hz/60Hz (Auto sensing)
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

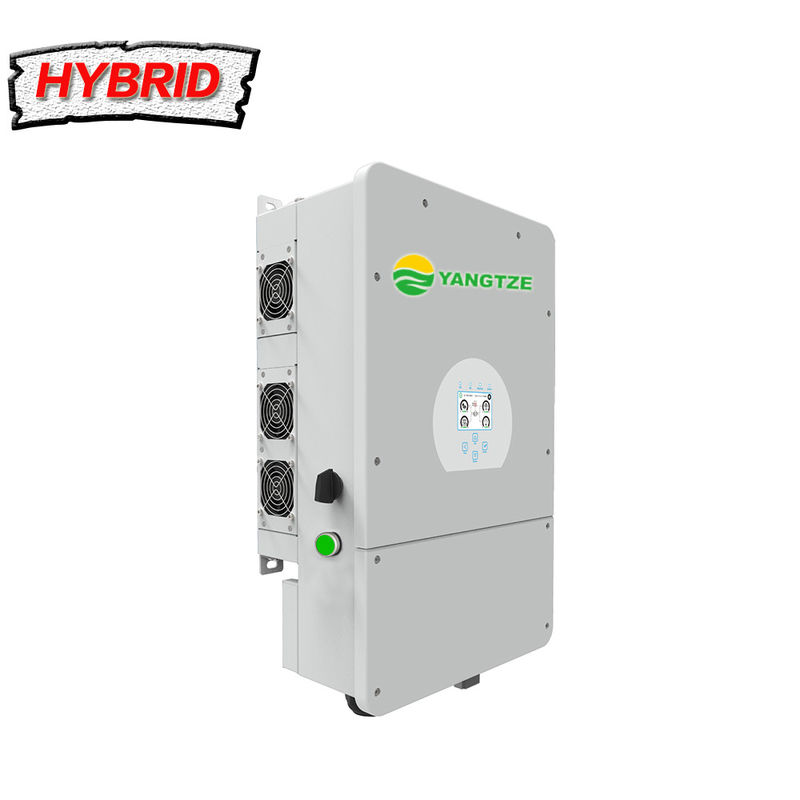

Overload Protection 5KW Hybrid Solar Inverter MPPT 48V With 10 Years Warranty 1

Packing and Shipping:

Packaging & Shipping for Solar Inverter

Solar inverter must be packaged and shipped according to the following standards:

The solar inverter must be packaged in a sturdy cardboard box or other suitable material.
The box must be able to withstand rough handling and must be secured with strong tape.
The box must be clearly labeled with the contents of the package and the destination address.
The solar inverter must be secured inside the package with protective material, such as bubble wrap, foam, or other suitable material.
The package must be placed in an appropriate shipping container for safe transportation.

FAQ:

Q1: What is the brand name of this solar inverter?

A1: The brand name of this solar inverter is Yangtze.

Q2: Where is this solar inverter made from?

A2: This solar inverter is made in China.

Q3: What certifications does this solar inverter have?

A3: This solar inverter has CE/TUV/UL/ISO/ROHS/IEC/Inmetro/ETL certifications.

Q4: What is the minimum order quantity of this solar inverter?

A4: The minimum order quantity of this solar inverter is 1 unit.
