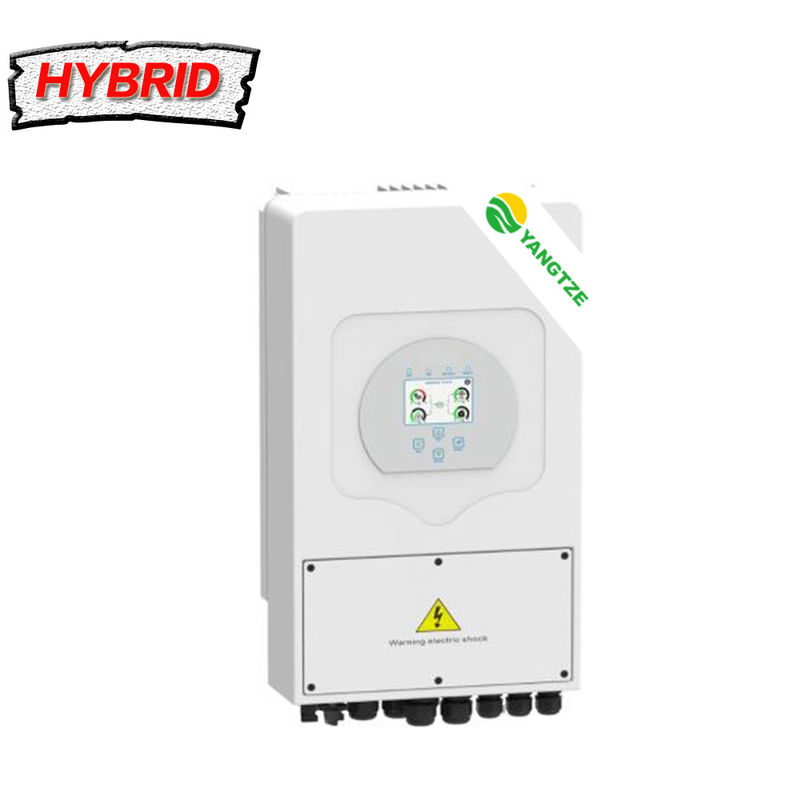

Yangtze 3.6KW Hybrid Solar Inverter MPPT 48V For Home

Product Details

Place of Origin: China

Brand Name: Yangtze

Certification: CE/TUV/UL/ISO/ROHS/IEC/Inmetro/ETL

Model Number: YSPH3.6K BH

Payment & Shipping Terms

Minimum Order Quantity: 1 Unit

Price: negotiable

Packaging Details: Carton+Pallet

Delivery Time: 10-30 Days

Payment Terms: T/T,L/C,Credit Card

Supply Ability: 10000 units/month

Get Best Price
Highlight:

MPPT 48v Hybrid Inverter

,

Home Hybrid Solar Inverter 48V

,

3.6KW Hybrid Solar Inverter

Storage Temperature:
-25℃~70℃
Output Frequency:
50/60Hz
Efficiency:
99%
Output Voltage:
AC 220/ 230/ 240V
Protection:
Overload, Short Circuit, Over Voltage, Under Voltage
Cooling Method:
Air Cooling/Fan
Product Name:
Solar Inverter
Warranty:
10 Years
Storage Temperature:
-25℃~70℃
Output Frequency:
50/60Hz
Efficiency:
99%
Output Voltage:
AC 220/ 230/ 240V
Protection:
Overload, Short Circuit, Over Voltage, Under Voltage
Cooling Method:
Air Cooling/Fan
Product Name:
Solar Inverter
Warranty:
10 Years
Yangtze 3.6KW Hybrid Solar Inverter MPPT 48V For Home

Technical Parameters:

Model
YSPH3.6K BH
YSPH5K BH
YSPH8K BH
YSPH10K BH
YSPH12K BH
Battery voltage
48V DC
48/160-550V DC
Battery type
Lithium/Lead-acid
INVERTER OUTPUT
Rated power
3600W
5000W
8000W
10000W
12000W
Paralell capability
YES/10 units in parallel max
Surge power
7200VA
10000VA
16000VA
20000VA
24000VA
Efficiency(peak)
98%
Waveform
Pure sine wave
Transfer time
10ms
SOLAR CHARGER
Maximum pv array power
4680W
6500W
10400W
13000W
15600W
MPPT range
200-650VDC
Maximum pv array open circuit voltage

800VDC
Numbers of mppts/ trackers

1/1
Maximum solar charge current
90A
120A
190A
210A
240A
Maximum efficiency
96%
AC CHARGER
Charge Current
60A
80A
AC Input Voltage
220/230/240/380/400/415 VAC
Current Harmonic Distortion

THD<3%(Linear load<1.5%)
Frequency Range
50Hz/60Hz (Auto sensing)
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative
Humidity(Non-condensing)
Altitude
<2000m
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C

Yangtze 3.6KW Hybrid Solar Inverter MPPT 48V For Home 0

Yangtze 3.6KW Hybrid Solar Inverter MPPT 48V For Home 1Yangtze 3.6KW Hybrid Solar Inverter MPPT 48V For Home 2



Packing and Shipping:

Packaging & Shipping for Solar Inverter

Solar inverter must be packaged and shipped according to the following standards:

  • The solar inverter must be packaged in a sturdy cardboard box or other suitable material.
  • The box must be able to withstand rough handling and must be secured with strong tape.
  • The box must be clearly labeled with the contents of the package and the destination address.
  • The solar inverter must be secured inside the package with protective material, such as bubble wrap, foam, or other suitable material.
  • The package must be placed in an appropriate shipping container for safe transportation.


FAQ:

Q1: What is the brand name of this solar inverter?

A1: The brand name of this solar inverter is Yangtze.

Q2: Where is this solar inverter made from?

A2: This solar inverter is made in China.

Q3: What certifications does this solar inverter have?

A3: This solar inverter has CE/TUV/UL/ISO/ROHS/IEC/Inmetro/ETL certifications.

Q4: What is the minimum order quantity of this solar inverter?

A4: The minimum order quantity of this solar inverter is 1 unit.
