Product Description:

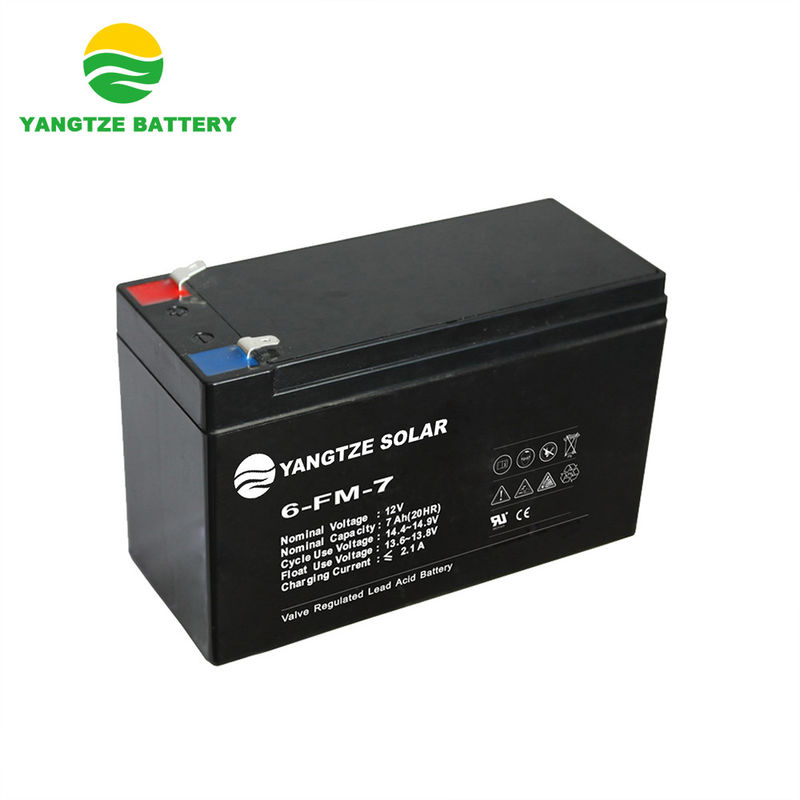

AGM Gel Battery is an advanced gel mat battery that is highly reliable and can offer up to 1500 cycles. The self-discharge rate is also low at only 3% or less per month. It is designed for use in a wide range of temperatures from -20℃ to 60℃ and has a voltage of 12V. The sealed storage battery is airtight and has superior leak-proof performance and excellent safety features. AGM Gel Battery is also known as Absorptive Glass Mat Battery, providing high performance power and energy storage. It is the ideal solution for applications that require reliable power.
Features:
- Product Name: AGM Gel Battery
- Battery Case: ABS Plastic Battery Box
- Technology: Absorbent Glass Mat Battery (AGM), Advanced Glass Battery, Absorptive Glass Mat Battery
- Self-discharge: ≤3%/Month
- Cycle Life: 1500 Times
- Sealed Type: Sealed Storage Battery
- Maintenance Type: Free
| 1. Functional Parameter |
5. Environment Temperature |
| Nominal Voltage |
12V |
Discharge Temperature |
-15~50℃ |
| Nominal Capacity (20 hour rate) |
7Ah |
Charge Temperature |
0~40℃ |
| Number of Cells |
6cells |
Storage Temperature |
-15~40℃ |
| 2. Rated Capacity at 25℃ (77° F) |
6. Inner Resistance & Max . Discharge Current |
| 20 hour rate (0.05C, 10.8V) |
7Ah |
Fully Charged battery at 25℃ (77° F) |
29mΩ |
| 5 hour rate (0.165C, 10.8V) |
5.79Ah |
Max. Discharge Current |
103A (5s) |
| 1 hour rate (0.55C, 10.5V) |
4.12Ah |
Short Circuit Current |
345A |
| 3. Capacity affected by Temperature (10 hour rate) |
7. Self-discharge at 25℃ (77° F) |
| 40℃ (104° F) |
103% |
Capacity after 3 month storage |
91% |
| 25℃ (77° F) |
100% |
Capacity after 6 month storage |
82% |
| 0℃ (32° F) |
85% |
Capacity after 9 month storage |
73% |
| -15℃ (5° F) |
65% |
Capacity after 12 month storage |
64% |
| 4. Dimension and Weight |
8. Constant voltage charging at 25℃ (77° F) |
| Length |
151mm |
Cyclic use |
14.4~14.9V |
| Width |
66mm |
Maximum charging current |
2.1A |
| Height |
95mm |
Temperature compensation |
-30mV/℃ |
| Total Height |
100mm |
Float use |
13.6~13.8V |
| Reference Weight |
2.07kg |
Temperature compensation |
-20mV/℃ |
Technical Parameters:
| Parameters |
Details |
| Maintenance Type |
Free |
| Sealed Type |
Sealed Storage Battery |
| Battery Case |
ABS Plastic Battery Box |
| Voltage |
12V |
| Terminal |
M8/M10 |
| Cycle Life |
1500 Times |
| Operating Temperature |
-20℃~60℃ |
| Self-discharge |
≤3%/Month |
| Product Name |
Gel Battery |
Applications:
Yangtze's 6-GFM(G)-7 AGM Gel Battery is a superior absorbed glass mat batter that offers many advantages over conventional batteries. With superior self-discharge rate of ≤3%/Month and an impressive cycle life of 1500 times, the 6-GFM(G)-7 is a reliable and durable choice. It is also certified by CE/TUV/ISO/ROHS/MSDS, making it safe and reliable for many applications. The battery is sealed to prevent leakage and corrosion, and is housed a ABS plastic battery box for additional safety and protection. The 6-GFM(G)-7 AGM Gel Battery is available in 12V and comes with minimum order quantity of one unit at competitive price. With a quick delivery time of 7-20 days and various payment terms such as L/C, T/T, Western Union,Credit Card, Yangtze's AGM Gel Battery is the ideal choice for many applications. Additionally, Yangtze has a supply ability of 10000 units/week, making it easy to obtain the AGM Gel Battery.
The 6-GFM(G)-7 AGM Gel Battery is suitable for many applications and scenarios, such as in telecommunications, UPS systems, solar and wind energy systems, motor vehicles, lawn mowers, and other power tools. The AGM Gel Battery offers superior performance with its high capacity, excellent deep discharge recovery, and low self-discharge rate. Its sealed design also makes it safe to use in harsh environments and it is also resistant to temperature and vibration, making it a reliable choice for many applications. All in all, the 6-GFM(G)-7 AGM Gel Battery is an ideal choice for many applications.
Support and Services:
AGM Gel Battery Technical Support and Service
At AGM Gel Battery, we provide comprehensive technical support and service for our products. Our experienced team of engineers is on hand to provide with you with the best solutions to any problem you may have.
We offer 24/7 online technical support and provide helpful answers to any questions or issues you may have. Our website also has a comprehensive library of product manuals, troubleshooting guides, and FAQs to provide you with the most comprehensive support.
For more serious problems, our team of engineers is available to provide on-site technical support and service. Our engineers have extensive experience in the field and are dedicated to providing you with the best service possible.
We also offer regular maintenance services to ensure that your products are functioning optimally. This includes inspection, cleaning, and installation of any necessary parts to ensure your products are always running at their best.
At AGM Gel Battery, we are dedicated to providing you with the best technical support and service available. If you have any questions or concerns, please don’t hesitate to contact us.
Packing and Shipping:
AGM Gel Battery packaging and shipping is done as following:
The battery unit is securely packed in a box designed to protect it during transportation. Bubble wrap and other cushioning materials are used to further protect the product. The box is closed with strong tape, labeled with product information, and shipped to the customer.
The package is further secured with multiple layers of protective wrapping to ensure the product is safe during transit. The package is then sealed and labeled with the necessary information. The package is shipped via a reliable shipping service such as FedEx or UPS.
