Product Details
Place of Origin: China
Brand Name: Yangtze
Certification: CE/TUV/ISO/ROHS/MSDS
Model Number: 6-GFM(G)-5
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Pallet+Carton box
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 10000 units/week
Cycle Life: |
1500 Times |
Sealed Type: |
Sealed Storage Battery |
Maintenance Type: |
Free |
Terminal: |
M8/M10 |
Operating Temperature: |
-20℃~60℃ |
Voltage: |
12V |
Self-discharge: |
≤3%/Month |
Battery Case: |
ABS Plastic Battery Box |
Cycle Life: |
1500 Times |
Sealed Type: |
Sealed Storage Battery |
Maintenance Type: |
Free |
Terminal: |
M8/M10 |
Operating Temperature: |
-20℃~60℃ |
Voltage: |
12V |
Self-discharge: |
≤3%/Month |
Battery Case: |
ABS Plastic Battery Box |
AGM Gel Battery is an advanced gel mat battery, also known as absorbent glass mat battery or absorptive glass battery. It features a cycle life of 1500 times, sealed type of sealed storage battery, voltage of 12V, maintenance type of free, and self-discharge of ≤3%/month. It is an ideal choice for a wide range of applications, providing superior performance and long-term reliability.
1. Functional Parameter | 5. Environment Temperature | ||
Nominal Voltage | 12V | Discharge Temperature | -15~50℃ |
Nominal Capacity (20 hour rate) | 5Ah | Charge Temperature | 0~40℃ |
Number of Cells | 6cells | Storage Temperature | -15~40℃ |
2. Rated Capacity at 25℃ (77° F) | 6. Inner Resistance & Max . Discharge Current | ||
20 hour rate (0.05C, 10.8V) | 5Ah | Fully Charged battery at 25℃ (77° F) | 34mΩ |
5 hour rate (0.165C, 10.8V) | 4.15Ah | Max. Discharge Current | 75A (5s) |
1 hour rate (0.55C, 10.5V) | 2.94Ah | Short Circuit Current | 250A |
3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 25℃ (77° F) | ||
40℃ (104° F) | 103% | Capacity after 3 month storage | 91% |
25℃ (77° F) | 100% | Capacity after 6 month storage | 82% |
0℃ (32° F) | 85% | Capacity after 9 month storage | 73% |
-15℃ (5° F) | 65% | Capacity after 12 month storage | 64% |
4. Dimension and Weight | 8. Constant voltage charging at 25℃ (77° F) | ||
Length | 90mm | Cyclic use | 14.4~14.9V |
Width | 70mm | Maximum charging current | 1.5A |
Height | 101mm | Temperature compensation | -30mV/℃ |
Total Height | 105mm | Float use | 13.6~13.8V |
Reference Weight | 1.6kg | Temperature compensation | -20mV/℃ |
Parameter | Value |
---|---|
Sealed Type | Sealed Storage Battery |
Cycle Life | 1500 Times |
Terminal | M8/M10 |
Voltage | 12V |
Operating Temperature | -20℃~60℃ |
Battery Case | ABS Plastic Battery Box |
Maintenance Type | Free |
Self-discharge | ≤3%/Month |
Battery Type | Absorptive Glass Mat Battery |

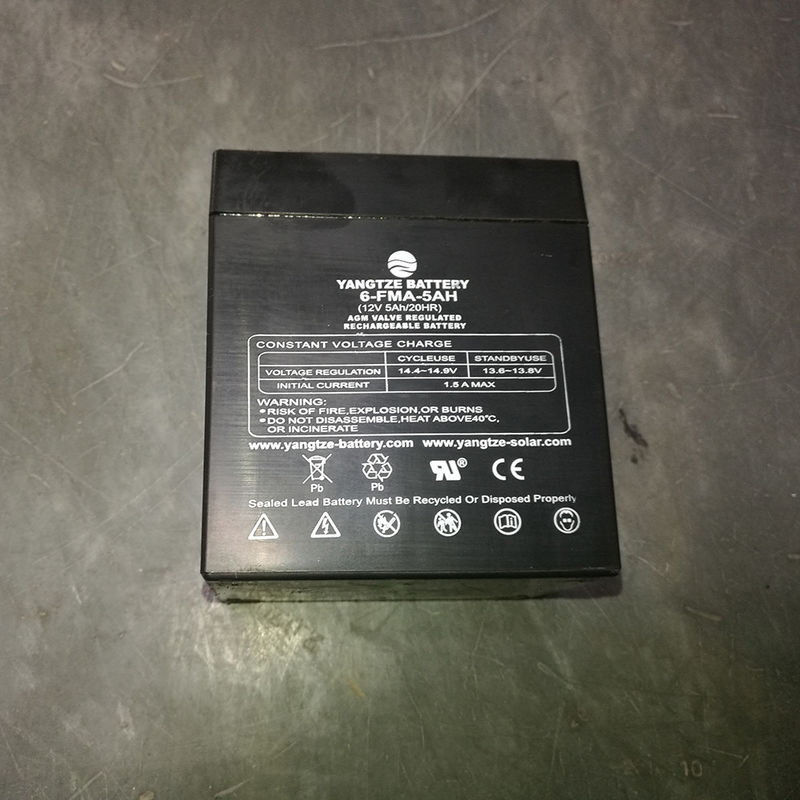

Yangtze AGM Gel Battery is an advanced gel battery with Absorbed Glass Mat (AGM) separators. This AGM Gel Battery, with model number 6-GFM(G)-5, is produced with high quality and certified by CE/TUV/ISO/ROHS/MSDS. It has a minimum order quantity of 1 unit and the price is negotiable. The packaging details are pallet and carton box. The delivery time for this AGM Gel Battery is 7-20 days, with payment terms such as L/C, T/T, Western Union and Credit Card. The supply ability for this AGM Gel Battery is 10000 units per week. Its self-discharge rate is ≤3% per month and the operating temperature is -20℃~60℃. In addition, it has a cycle life of 1500 times and a voltage of 12V. It is of free maintenance type and very cost-effective.
This top-notch AGM Gel Battery from Yangtze is suitable for a wide range of applications, such as solar energy, UPS system, telecommunication, medical equipments, emergency power system, golf carts, traction batteries, etc. It is highly reliable and durable, and doesn’t require frequent check-ups or maintenance. It is a great choice for those looking for a safe and cost-effective Absorptive Glass Mat Battery.
AGM Gel Battery offers technical support and services for customers who need help in setting up and maintaining their products. Our team of trained and experienced professionals is available to answer any questions you might have about our products, their installation and maintenance.
We offer a wide range of services, including detailed installation and setup instructions, troubleshooting and repair assistance, and regular maintenance to keep your AGM Gel Battery in top condition. Our customer service team is also available to provide additional support and advice on how to get the most out of your product.
Our technical support and services are designed to ensure that your AGM Gel Battery continues to provide reliable, efficient performance for years to come. We look forward to helping you get the most out of your product.
AGM Gel Battery products are shipped in a secure and protective packaging. The package is designed to be strong and durable, ensuring that the batteries are adequately protected during the shipping process. Each package is labeled with the product name and number, as well as other important information such as weight, size, and destination.
The shipping process is handled by a reliable third-party logistics provider. They take special care to ensure that the products are delivered safely and securely to the customer's destination. They also provide tracking information, so customers can easily monitor the progress of their shipment.
