Product Details
Place of Origin: China
Brand Name: Yangtze
Certification: CE/TUV/ISO/ROHS/MSDS
Model Number: 6-GFM(G)-24
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Pallet+Carton box
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 10000 units/week
Terminal: |
M8/M10 |
Voltage: |
12V |
Battery Case: |
ABS Plastic Battery Box |
Self-discharge: |
≤3%/Month |
Sealed Type: |
Sealed Storage Battery |
Operating Temperature: |
-20℃~60℃ |
Maintenance Type: |
Free |
Cycle Life: |
1500 Times |
Terminal: |
M8/M10 |
Voltage: |
12V |
Battery Case: |
ABS Plastic Battery Box |
Self-discharge: |
≤3%/Month |
Sealed Type: |
Sealed Storage Battery |
Operating Temperature: |
-20℃~60℃ |
Maintenance Type: |
Free |
Cycle Life: |
1500 Times |

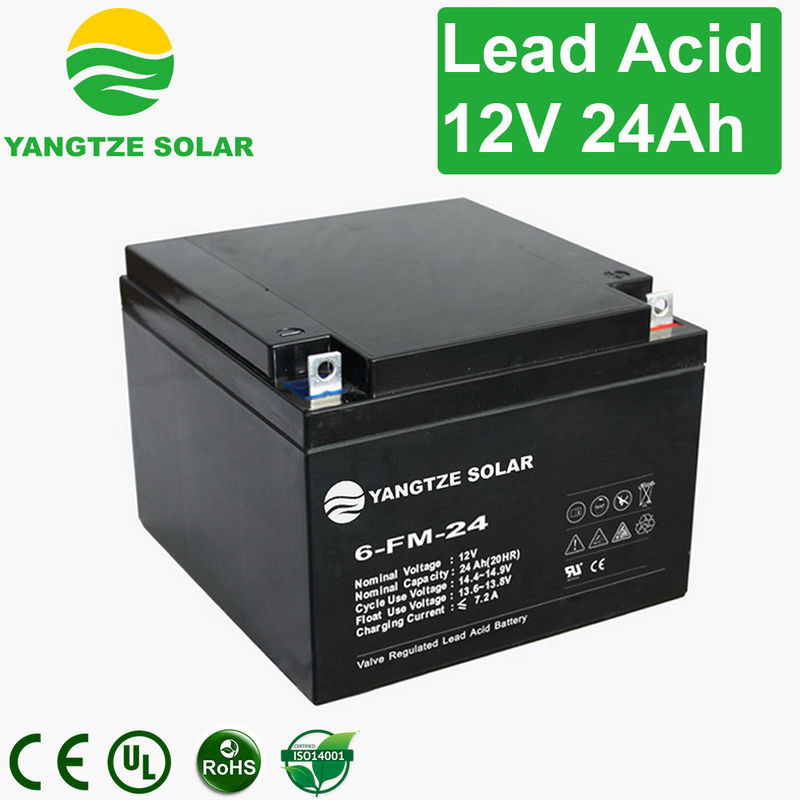

AGM Gel Battery is an Absorbed Glass Battery, also known as Absorptive Glass Battery or Absorbent Glass Mat Battery. It is a kind of rechargeable battery, which is characterized by its high performance and safety during use. Its battery case is made of ABS plastic battery box, with an operating temperature ranging from -20℃ to 60℃. This AGM battery has a high cycle life of 1500 times, and its terminals are M8/M10. In addition, the self-discharge rate of AGM Gel Battery is ≤3% per month.
1. Functional Parameter | 5. Environment Temperature | ||
Nominal Voltage | 12V | Discharge Temperature | -15~50℃ |
Nominal Capacity (20 hour rate) | 24Ah | Charge Temperature | 0~40℃ |
Number of Cells | 6cells | Storage Temperature | -15~40℃ |
2. Rated Capacity at 25℃ (77° F) | 6. Inner Resistance & Max . Discharge Current | ||
20 hour rate (0.05C, 10.8V) | 24Ah | Fully Charged battery at 25℃ (77° F) | 12mΩ |
5 hour rate (0.165C, 10.8V) | 19.9Ah | Max. Discharge Current | 360A (5s) |
1 hour rate (0.55C, 10.5V) | 14.1Ah | Short Circuit Current | 1200A |
3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 25℃ (77° F) | ||
40℃ (104° F) | 103% | Capacity after 3 month storage | 91% |
25℃ (77° F) | 100% | Capacity after 6 month storage | 82% |
0℃ (32° F) | 85% | Capacity after 9 month storage | 73% |
-15℃ (5° F) | 65% | Capacity after 12 month storage | 64% |
4. Dimension and Weight | 8. Constant voltage charging at 25℃ (77° F) | ||
Length | 175mm | Cyclic use | 14.4~14.9V |
Width | 166mm | Maximum charging current | 7.2A |
Height | 125mm | Temperature compensation | -30mV/℃ |
Total Height | 125mm | Float use | 13.6~13.8V |
Reference Weight | 7.6kg | Temperature compensation | -20mV/℃ |
Attribute | Description |
---|---|
Product Name | Advanced Gel Mat Battery, Absorbed Glass Battery, Advanced Gel Battery |
Operating Temperature | -20℃~60℃ |
Terminal | M8/M10 |
Voltage | 12V |
Battery Case | ABS Plastic Battery Box |
Maintenance Type | Free |
Self-discharge | ≤3%/Month |
Sealed Type | Sealed Storage Battery |
Cycle Life | 1500 Times |
AGM Gel Battery is a kind of Absorbed Glass Mat Battery, also known as Absorptive Glass Mat Battery and AGM Battery, which is manufactured by Yangtze, a brand known for its top-notch quality and reliable performance. This AGM Gel Battery is certified by CE/TUV/ISO/ROHS/MSDS and the minimum order quantity is one unit. The pallet and carton box packaging ensures safe and secure delivery. The delivery time is 7-20 days and the payment terms are L/C, T/T, Western Union, and Credit Card. Supply Ability of this AGM Gel Battery is 10000 units/week. It has ABS Plastic Battery Box and Sealed Storage Battery and is maintenance free. The battery cycle life is 1500 times and the voltage is 12V. This AGM Gel Battery is priced competitively and is negotiable.
At AGM, we are committed to providing you with the highest quality products and customer support. We have a team of experienced technicians available to provide technical support and service for our AGM Gel Battery products.
Our technical support team is available to answer any questions you may have about our products, including installation, operation, maintenance, and troubleshooting. We also offer a variety of services, such as battery testing, repair and replacement, and warranty service.
If you need assistance with our AGM Gel Battery products, please contact our technical support team at your earliest convenience. Our team is here to help you get the most out of your AGM battery.
AGM Gel Battery Packaging and Shipping:
