Product Details
Place of Origin: China
Brand Name: Yangtze
Certification: CE/TUV/ISO/ROHS/MSDS
Model Number: 6-GFM(G)-38
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Pallet+Carton box
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 10000 units/week
Self-discharge: |
≤3%/Month |
Maintenance Type: |
Free |
Operating Temperature: |
-20℃~60℃ |
Cycle Life: |
1500 Times |
Voltage: |
12V |
Terminal: |
M8/M10 |
Battery Case: |
ABS Plastic Battery Box |
Sealed Type: |
Sealed Storage Battery |
Self-discharge: |
≤3%/Month |
Maintenance Type: |
Free |
Operating Temperature: |
-20℃~60℃ |
Cycle Life: |
1500 Times |
Voltage: |
12V |
Terminal: |
M8/M10 |
Battery Case: |
ABS Plastic Battery Box |
Sealed Type: |
Sealed Storage Battery |

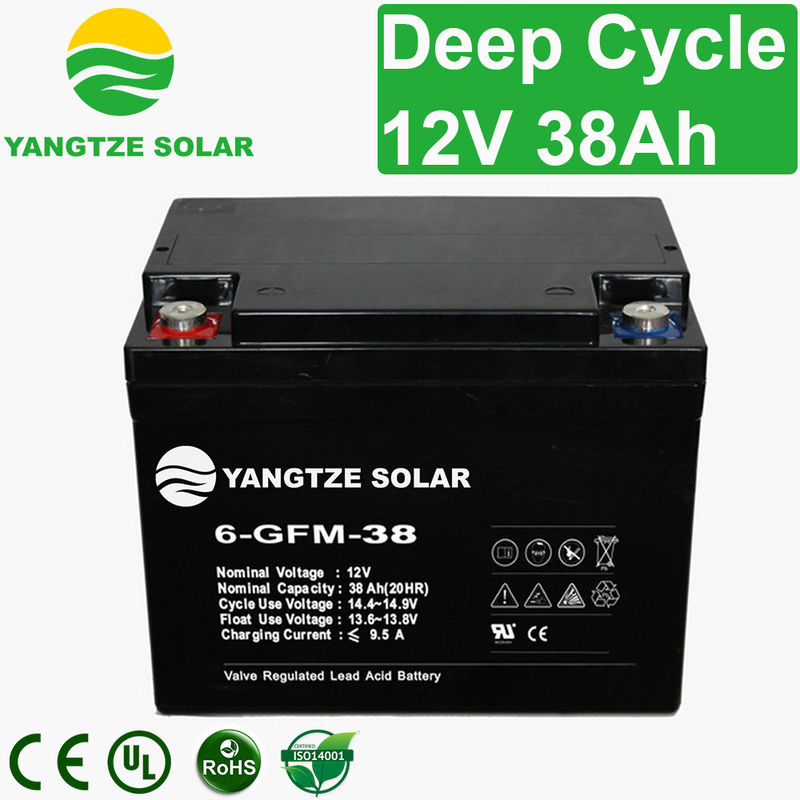

AGM Gel Battery is an advanced absorbent glass mat battery designed for high performance and long-term durability. It is constructed with advanced Absorbed Glass Mat (AGM) technology, providing excellent sealed, leak proof, and maintenance-free performance. The battery features an operating temperature range of -20℃~60℃, and is available with M8/M10 terminals. With a cycle life of 1500 times, and a voltage of 12V, AGM Gel Battery is the perfect sealed storage battery for various applications. It is designed with the latest Absorptive Glass Mat (AGM) technology, providing an efficient and reliable source of energy. This advanced gel battery is perfect for those looking for a leak-proof and maintenance-free solution.
1. Functional Parameter | 5. Environment Temperature | ||
Nominal Voltage | 12V | Discharge Temperature | -15~50℃ |
Nominal Capacity (10 hour rate) | 38Ah | Charge Temperature | 0~40℃ |
Number of Cells | 6cells | Storage Temperature | -15~40℃ |
2. Rated Capacity at 25℃ (77° F) | 6. Inner Resistance & Max . Discharge Current | ||
10 hour rate (0.1C, 10.8V) | 38Ah | Fully Charged battery at 25℃ (77° F) | 9.6mΩ |
3 hour rate (0.25C, 10.8V) | 29.1Ah | Max. Discharge Current | 570A (5s) |
1 hour rate (0.55C, 10.5V) | 21Ah | Short Circuit Current | 1900A |
3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 25℃ (77° F) | ||
40℃ (104° F) | 103% | Capacity after 3 month storage | 91% |
25℃ (77° F) | 100% | Capacity after 6 month storage | 82% |
0℃ (32° F) | 85% | Capacity after 9 month storage | 73% |
-15℃ (5° F) | 65% | Capacity after 12 month storage | 64% |
4. Dimension and Weight | 8. Constant voltage charging at 25℃ (77° F) | ||
Length | 197mm | Cyclic use | 14.4~14.9V |
Width | 165mm | Maximum charging current | 9.5A |
Height | 170mm | Temperature compensation | -30mV/℃ |
Total Height | 170mm | Float use | 13.6~13.8V |
Reference Weight | 11.8kg | Temperature compensation | -20mV/℃ |
Parameter | Value |
---|---|
Operating Temperature | -20℃~60℃ |
Sealed Type | Sealed Storage Battery |
Voltage | 12V |
Cycle Life | 1500 Times |
Self-discharge | ≤3%/Month |
Battery Case | ABS Plastic Battery Box |
Terminal | M8/M10 |
Maintenance Type | Free |
Type | Absorbent Glass Mat Battery, Advanced Gel Mat Battery |
The Yangtze 6-GFM(G)-65 AGM Gel Battery is a reliable and long-lasting battery that is designed to use Absorbed Glass Mat (AGM) and Gel technologies. This battery is certified by CE/TUV/ISO/ROHS/MSDS and is available in a minimum quantity of 1 unit. With a competitive price and quick delivery time of 7-20 days, it is a great choice for those looking for a quality battery. It is available in an ABS plastic battery box and features terminals of M8/M10. This battery also has a sealed storage battery and a self-discharge rate of ≤3%/month. It can operate in temperatures of -20℃~60℃ and has a supply ability of 10000 units/week. The payment terms are L/C, T/T, Western Union, and Credit Card. The packaging details are pallet and carton box.
Packaging and Shipping of AGM Gel Battery:
The AGM Gel Battery is packaged in a sealed carton. The carton is designed to protect the battery from dirt, dust, and other environmental elements. It is also designed to withstand the rigors of shipping and handling. The carton is clearly labeled with the product information and instructions.
The AGM Gel Battery is shipped via ground transportation. It is shipped in a box that is clearly labeled with the product information and instructions. The box is also able to withstand the rigors of shipping and handling. The AGM Gel Battery is properly packaged to ensure it arrives at its destination in pristine condition.
A1: The Brand Name of the AGM Gel Battery is Yangtze.
A2: The Model Number of the AGM Gel Battery is 6-GFM(G)-65.
A3: The AGM Gel Battery is made in China.
A4: The AGM Gel Battery has CE/TUV/ISO/ROHS/MSDS certifications.
A5: The minimum order quantity for the AGM Gel Battery is 1 unit.
