Product Description:

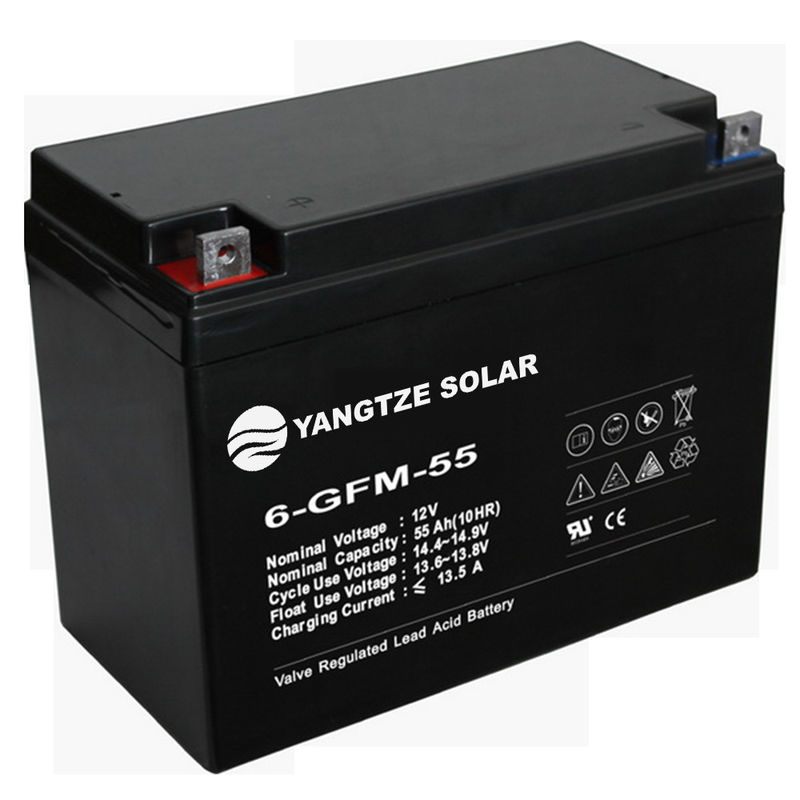

The AGM Gel Battery is an advanced glass battery, also known as an advanced gel battery or Absorptive Glass Mat Battery. This sealed storage battery is designed to provide superior performance in 12V applications. Featuring an ABS plastic battery box, this AGM Gel Battery has a self-discharge rate of ≤3%/Month and is equipped with M8/M10 terminals. The AGM Gel Battery is designed to offer superior performance and reliability for a wide range of applications.
| 1. Functional Parameter |
5. Environment Temperature |
| Nominal Voltage |
12V |
Discharge Temperature |
-15~50℃ |
| Nominal Capacity (10 hour rate) |
55Ah |
Charge Temperature |
0~40℃ |
| Number of Cells |
6cells |
Storage Temperature |
-15~40℃ |
| 2. Rated Capacity at 25℃ (77° F) |
6. Inner Resistance & Max . Discharge Current |
| 10 hour rate (0.1C, 10.8V) |
55Ah |
Fully Charged battery at 25℃ (77° F) |
6.75mΩ |
| 3 hour rate (0.25C, 10.8V) |
42Ah |
Max. Discharge Current |
825A (5s) |
| 1 hour rate (0.55C, 10.5V) |
31.1Ah |
Short Circuit Current |
2750A |
| 3. Capacity affected by Temperature (10 hour rate) |
7. Self-discharge at 25℃ (77° F) |
| 40℃ (104° F) |
103% |
Capacity after 3 month storage |
91% |
| 25℃ (77° F) |
100% |
Capacity after 6 month storage |
82% |
| 0℃ (32° F) |
85% |
Capacity after 9 month storage |
73% |
| -15℃ (5° F) |
65% |
Capacity after 12 month storage |
64% |
| 4. Dimension and Weight |
8. Constant voltage charging at 25℃ (77° F) |
| Length |
230mm |
Cyclic use |
14.4~14.9V |
| Width |
137mm |
Maximum charging current |
13.75A |
| Height |
210mm |
Temperature compensation |
-30mV/℃ |
| Total Height |
215mm |
Float use |
13.6~13.8V |
| Reference Weight |
17.3kg |
Temperature compensation |
-20mV/℃ |
Features:
- Product Name: AGM Gel Battery
- Maintenance Type: Free
- Operating Temperature: -20℃~60℃
- Battery Case: ABS Plastic Battery Box
- Self-discharge: ≤3%/Month
- Sealed Type: Sealed Storage Battery
- Advanced Gel Battery: AGM Gel Battery is an advanced gel battery which is constructed with Absorptive Glass Mat (AGM) technology.
- Absorptive Glass Battery: AGM Gel Battery is also known as Absorptive Glass Battery, which is designed with an Absorptive Glass Mat separator.
- Absorbed Glass Mat Battery: AGM Gel Battery is composed of an Absorbed Glass Mat which holds the electrolyte.
Technical Parameters:
| Attribute |
Parameter |
| Battery Case |
ABS Plastic Battery Box |
| Operating Temperature |
-20℃~60℃ |
| Sealed Type |
Sealed Storage Battery |
| Maintenance Type |
Free |
| Self-discharge |
≤3%/Month |
| Terminal |
M8/M10 |
| Cycle Life |
1500 Times |
| Voltage |
12V |
Applications:
Yangtze 6-GFM(G)-65 Advanced Gel Battery is an ideal choice for various applications including electric vehicles, golf carts, boats, and other applications. This battery features CE/TUV/ISO/ROHS/MSDS certification and is available with a minimum order quantity of one unit. It is made of ABS plastic battery box and offers a self-discharge rate of ≤3%/Month. This battery also features free maintenance and can be used for up to 1500 cycles. It is available in 12V and is offered at a negotiable price. It comes in a pallet+carton box packaging, with a delivery time of 7-20 days. Payment terms include L/C, T/T, Western Union, and credit card. Yangtze 6-GFM(G)-65 Advanced Gel Battery is able to provide up to 10000 units/week and is an ideal choice for Absorptive Glass Mat Battery, Absorptive Glass Battery, AGM Battery, and other applications.
Packing and Shipping:
Packaging & Shipping
AGM Gel Battery is safely and securely packaged before shipping. All batteries are packaged in special shipping containers that are designed to protect against any external damage. The containers are then placed into a larger box or envelope to ensure that they remain secure during shipping.
These batteries are shipped using a variety of methods, depending on the size and weight of the order. Most orders are shipped via UPS, FedEx, or USPS, and typically arrive within a few days. For large orders, we may use a freight carrier.
FAQ:
- Q: What is the Brand Name of AGM Gel Battery?
- A: The Brand Name is Yangtze.
- Q: What is the Model Number of AGM Gel Battery?
- A: The Model Number is 6-GFM(G)-65.
- Q: Where is AGM Gel Battery made?
- A: AGM Gel Battery is made in China.
- Q: Does AGM Gel Battery have certifications?
- A: Yes, AGM Gel Battery has CE/TUV/ISO/ROHS/MSDS certifications.
- Q: What is the Minimum Order Quantity for AGM Gel Battery?
- A: The Minimum Order Quantity is 1 unit.
