Product Details
Place of Origin: China
Brand Name: Yangtze
Certification: CE/TUV/ISO/ROHS/MSDS
Model Number: 6-GFM(G)-65
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Pallet+Carton box
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 10000 units/week
Voltage: |
12V |
Terminal: |
M8/M10 |
Sealed Type: |
Sealed Storage Battery |
Cycle Life: |
1500 Times |
Battery Case: |
ABS Plastic Battery Box |
Operating Temperature: |
-20℃~60℃ |
Self-discharge: |
≤3%/Month |
Maintenance Type: |
Free |
Voltage: |
12V |
Terminal: |
M8/M10 |
Sealed Type: |
Sealed Storage Battery |
Cycle Life: |
1500 Times |
Battery Case: |
ABS Plastic Battery Box |
Operating Temperature: |
-20℃~60℃ |
Self-discharge: |
≤3%/Month |
Maintenance Type: |
Free |

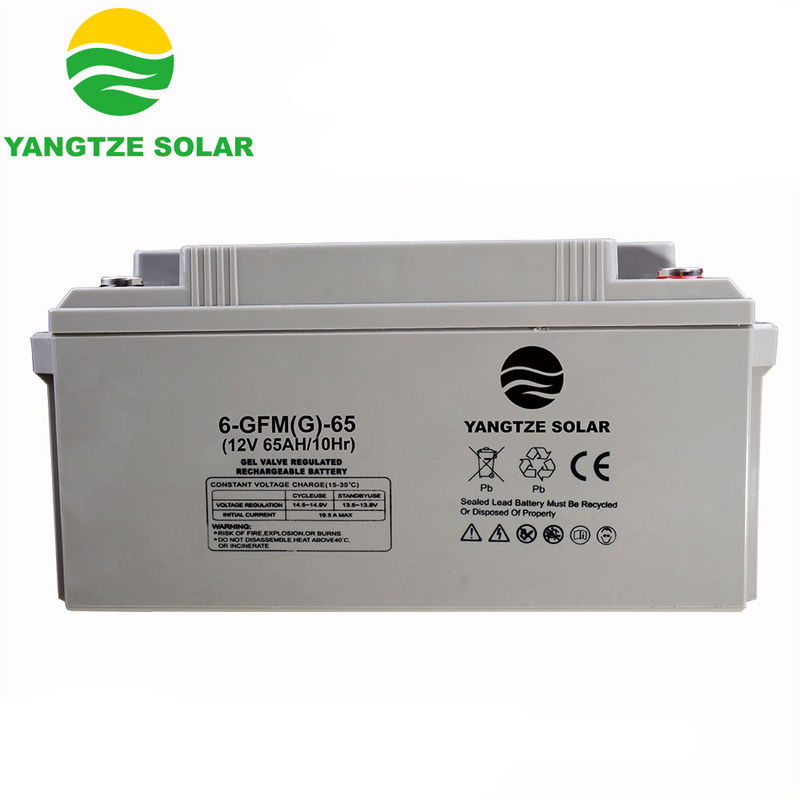

AGM Gel Battery, also known as Absorptive Glass Battery or Absorbent Glass Mat Battery, is a maintenance free battery designed to provide a reliable and efficient power source. With an operating temperature range of -20℃ to 60℃, it is suitable for a variety of applications. Its cycle life of up to 1500 times makes it a robust and cost-effective solution. Moreover, it is designed with M8/M10 terminals and ABS Plastic Battery Box, ensuring durability and long-term performance.
1. Functional Parameter | 5. Environment Temperature | ||
Nominal Voltage | 12V | Discharge Temperature | -15~50℃ |
Nominal Capacity (10 hour rate) | 65Ah | Charge Temperature | 0~40℃ |
Number of Cells | 6cells | Storage Temperature | -15~40℃ |
2. Rated Capacity at 25℃ (77° F) | 6. Inner Resistance & Max . Discharge Current | ||
10 hour rate (0.1C, 10.8V) | 65Ah | Fully Charged battery at 25℃ (77° F) | 6.5mΩ |
3 hour rate (0.25C, 10.8V) | 46Ah | Max. Discharge Current | 900A (5s) |
1 hour rate (0.55C, 10.5V) | 33.1Ah | Short Circuit Current | 3000A |
3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 25℃ (77° F) | ||
40℃ (104° F) | 103% | Capacity after 3 month storage | 91% |
25℃ (77° F) | 100% | Capacity after 6 month storage | 82% |
0℃ (32° F) | 85% | Capacity after 9 month storage | 73% |
-15℃ (5° F) | 65% | Capacity after 12 month storage | 64% |
4. Dimension and Weight | 8. Constant voltage charging at 25℃ (77° F) | ||
Length | 350mm | Cyclic use | 14.4~14.9V |
Width | 166mm | Maximum charging current | 15A |
Height | 175mm | Temperature compensation | -30mV/℃ |
Total Height | 175mm | Float use | 13.6~13.8V |
Reference Weight | 19.2kg | Temperature compensation | -20mV/℃ |
Property | Value |
---|---|
Battery Type | Advanced Gel Mat Battery, Absorbed Glass Mat Battery |
Voltage | 12V |
Self-discharge | ≤3%/Month |
Battery Case | ABS Plastic Battery Box |
Sealed Type | Sealed Storage Battery |
Operating Temperature | -20℃~60℃ |
Maintenance Type | Free |
Cycle Life | 1500 Times |
Terminal | M8/M10 |
AGM Gel Battery is a type of Absorbed Glass Mat (AGM) battery, which is one of the most advanced and reliable gel battery in the world. It has been widely used in many different applications due to its high performance and reliability. Yangtze AGM Gel Battery is a high-quality, high-performance battery with a unique combination of advanced gel technology and ABS plastic battery case. It is a perfect choice for a wide range of applications, such as automotive, industrial, medical, telecommunications, security systems, and renewable energy systems. It is also suitable for stationary and mobile applications, as well as emergency standby power systems.
Yangtze AGM Gel Battery has a high cycle life of up to 1500 times, and it has a wide operating temperature range of -20℃~60℃. It is also maintenance-free, which means that you don’t have to worry about frequent maintenance and repairs. It is also certified by CE, TUV, ISO, ROHS, and MSDS. Moreover, the terminal is M8/M10, and you can place your order with a minimum order quantity of 1 unit. The price is negotiable and the delivery time is 7-20 days. You can also choose from a variety of payment terms, such as L/C, T/T, Western Union, and Credit Card. The packaging details are Pallet+Carton box, and the supply ability is 10000 units/week.
AGM Gel Batteries are securely packaged to ensure safe shipping. The packaging includes a corrugated cardboard box and cushioning material around the battery. The box includes the battery type, voltage, and capacity to ensure proper handling.
The packaging is designed to ensure the battery is protected from external elements and impacts during shipping. AGM Gel Batteries should be shipped with care and stored in a cool, dry area away from direct sunlight.
