Product Details
Place of Origin: China
Brand Name: Yangtze
Certification: CE/TUV/ISO/ROHS/MSDS
Model Number: OPZS-1500
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Pallet+Carton box
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 5000 units/week
Recombination Efficiency: |
≥99% |
Capacity Range: |
200Ah-3000Ah |
Impedance: |
≤0.5mΩ |
Container Material: |
ABS |
Terminal Type: |
M6/M8 |
Self Discharge: |
≤3%/month |
Battery Type: |
OPZV&OPZS |
Float Voltage: |
2.25-2.35V/cell |
Recombination Efficiency: |
≥99% |
Capacity Range: |
200Ah-3000Ah |
Impedance: |
≤0.5mΩ |
Container Material: |
ABS |
Terminal Type: |
M6/M8 |
Self Discharge: |
≤3%/month |
Battery Type: |
OPZV&OPZS |
Float Voltage: |
2.25-2.35V/cell |

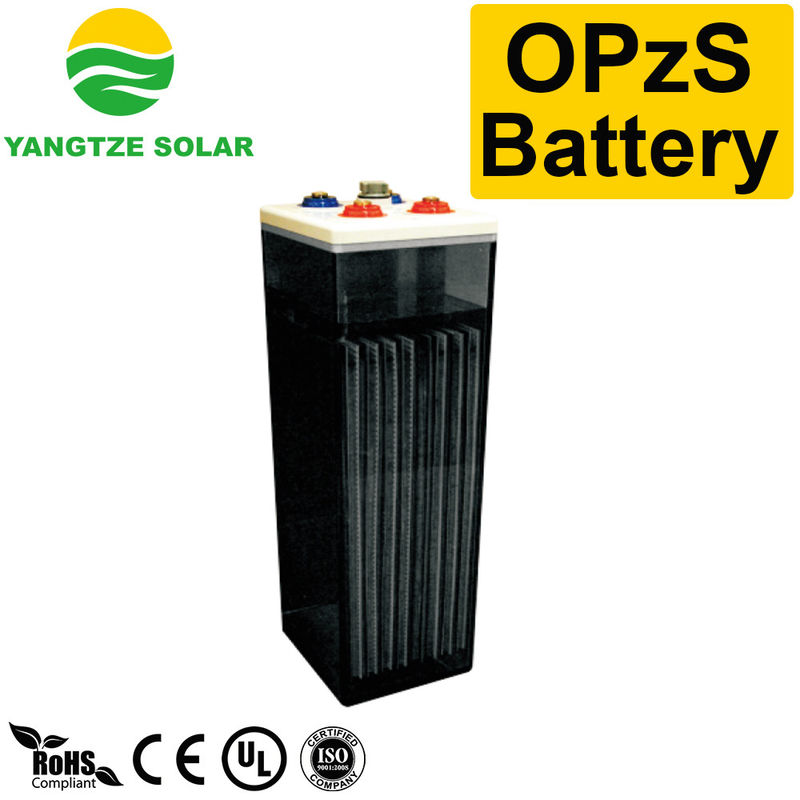

The OPZV OPZS is a tubular battery with a capacity range of 200Ah to 3000Ah, providing reliable and efficient power for a variety of applications. It features an impressive self-discharge rate of 3% per month, an impedance of 0.5mΩ, and an impressive design life of 30 years. The container material is made of ABS for superior durability and strength. The OPZV OPZS is the perfect choice for any project requiring a tubular battery with a high capacity rating.
The OPZV OPZS battery is ideal for use in off-grid and residential solar energy systems, as well as other applications requiring a reliable and powerful battery solution. It features a low self-discharge rate, low impedance, and an incredibly long design life, all of which combine to make the OPZV OPZS a superior choice for energy storage.
The OPZV OPZS tubular battery is a top-of-the-line solution for any project requiring a high-capacity, long-lasting, and reliable power source. With its impressive self-discharge rate, low impedance, and ABS container material, the OPZV OPZS is an unbeatable choice for any application.
1. Functional Parameter | 5. Environment Temperature | ||
Nominal Voltage | 2V | Discharge Temperature | -15~55℃ |
Nominal Capacity (10 hour rate) | 1500Ah | Charge Temperature | -0~45℃ |
Designed Floating Life 20℃ (68° F) | 15~20years | Storage Temperature | -15~45℃ |
2. Rated Capacity at 20℃ (68° F) | 6. Inner Resistance & Max . Discharge Current | ||
5 hour rate (266.4A, 1.75V/cell) | 1332.0Ah | Fully Charged battery at 20℃ (68° F) | 0.21mΩ |
3 hour rate (385.5A, 1.75V/cell) | 1156.5Ah | Max. Discharge Current | 12000A (5s) |
1 hour rate (856.5A, 1.60V/cell) | 856.5Ah |   |   |
3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 20℃ (68° F) | ||
40℃ (104° F) | 103% | Capacity after 3 month storage | 91% |
25℃ (77° F) | 100% | Capacity after 6 month storage | 82% |
0℃ (32° F) | 86% | Capacity after 9 month storage | 73% |
-15℃ (5° F) | 70% | Capacity after 12 month storage | 64% |
4. Dimension and Weight | 8. Constant voltage charging at 20℃ (68° F) | ||
Length | 275mm | Cyclic use | 2.30~2.40V |
Width | 210mm | Maximum charging current | 150A |
Height | 796mm | Temperature compensation | -5mV/℃ |
Total Height | 851mm | Float use | 2.23~2.25V |
Reference Weight Without Electrolyte | 83.8kg | Temperature compensation | -3mV/℃ |
Yangtze OPZV-2500 battery is an ideal power storage solution for solar and deep cycle applications. It features a float voltage of 2.25-2.35V/cell, an impedance of ≤0.5mΩ, and a recombination efficiency of ≥99%. It is designed to operate in a wide temperature range of -40℃ to +60℃, with a self-discharge rate of ≤3%/month. It carries CE/TUV/ISO/ROHS/MSDS certifications, and is available in minimum order quantity of 1 unit with competitive pricing. The battery is packaged in pallet and carton box, and can be shipped within 7-20 days from the time of ordering. Payment methods include L/C, T/T, Western Union, and Credit Card. With a supply ability of 5000 units/week, Yangtze OPZV-2500 battery is the perfect choice for long-term and reliable power storage.
Technical support and services for OPZV OPZS products include:
OPZV OPZS products are packaged and shipped in accordance with international standards to ensure a safe delivery. Each product is secure in individual plastic or corrugated cartons. Additional packing materials may be used to provide additional protection for fragile items. Bulk packaging and customized packaging solutions are also available, depending on the customer's needs.
We use reliable and reputable shipping companies, such as FedEx, UPS and DHL, to ensure timely and safe delivery of our products. All products are shipped with complete tracking information and insurance, and can be tracked online.
