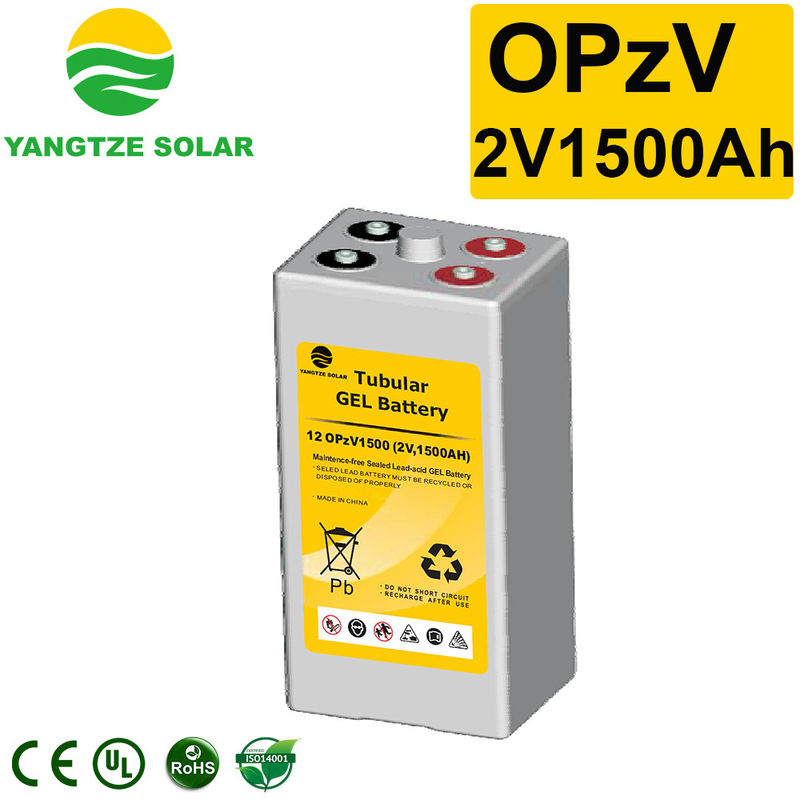

Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System

Product Details

Place of Origin: China

Brand Name: Yangtze

Certification: CE/TUV/ISO/ROHS/MSDS

Model Number: OPZV-1500

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiable

Packaging Details: Pallet+Carton box

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union,Credit Card

Supply Ability: 5000 units/week

Get Best Price
Highlight:

2V 1500Ah OPZV OPZS

,

Custom OPZV OPZS

,

Tubular opzv 2v

Container Material:
ABS
Recombination Efficiency:
≥99%
Float Voltage:
2.25-2.35V/cell
Operating Temperature Range:
–40℃ To +60℃
Capacity Range:
200Ah-3000Ah
Self Discharge:
≤3%/month
Design Life:
30 Years
Impedance:
≤0.5mΩ
Container Material:
ABS
Recombination Efficiency:
≥99%
Float Voltage:
2.25-2.35V/cell
Operating Temperature Range:
–40℃ To +60℃
Capacity Range:
200Ah-3000Ah
Self Discharge:
≤3%/month
Design Life:
30 Years
Impedance:
≤0.5mΩ
Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System

Product Description:

OPZV OPZS tubular batteries are designed to provide the highest recombination efficiency and design life. With a recombination efficiency of ≥99%, a design life of 30 years, and a container material of ABS, these batteries are built to last. The operating temperature range is –40℃ To +60℃, and the float voltage of the battery is 2.25-2.35V/cell. OPZV OPZS tubular batteries are the perfect choice for reliable, long-term energy storage.

Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 0



Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 1

1. Functional Parameter 5. Environment Temperature
Nominal Voltage 2V Discharge Temperature -40~60
Nominal Capacity @C10 to 1.8V/cell 1500Ah Charge Temperature -15~50
Designed Floating Life 20 (68° F) 20years Storage Temperature -15~40
2. Rated Capacity at 20 (68° F) 6. Inner Resistance & Max . Discharge Current
5 hour rate (257A, 1.75V/cell) 1285Ah Fully Charged battery at 20 (68° F) 0.32mΩ
3 hour rate (377A, 1.75V/cell) 1131Ah Max. Discharge Current 3000A (5s)
1 hour rate (849A, 1.60V/cell) 849Ah Short Circuit Current 6200A
3. Capacity affected by Temperature (10 hour rate) 7. Self-discharge at 20 (68° F)
40 (104° F) 102% Capacity after 3 month storage 94%
25 (77° F) 100% Capacity after 6 month storage 88%
0 (32° F) 90% Capacity after 9 month storage 82%
-15 (5° F) 70% Capacity after 12 month storage 76%
4. Dimension and Weight 8. Constant voltage charging at 20 (68° F)
Length 275mm Cyclic use 2.35~2.40V
Width 210mm Maximum charging current 300A
Height 796mm Temperature compensation -5mV/
Total Height 831mm Float use 2.25~2.29V
Reference Weight 105kg Temperature compensation -3mV/


Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 2Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 3Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 4

Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 5Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 6Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 7Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 8Custom 2V 1500Ah Tubular OPZV OPZS Battery For Wind Energy System 9

Features:

  • Product Name: OPZV OPZS
  • Float Voltage: 2.25-2.35V/cell
  • Container Material: ABS
  • Design Life: 30 Years
  • Capacity Range: 200Ah-3000Ah
  • Recombination Efficiency: ≥99%


Applications:

The OPZV and OPZS batteries from Yangtze are designed for a wide range of applications in various scenarios. The OPZV batteries come with a terminal type of M6/M8 and a recombination efficiency of ≥99%. They are CE/TUV/ISO/ROHS/MSDS certified and meet the 30 year design life requirements. These batteries have an operating temperature range of -40℃ to +60℃ and are ABS container constructed. They are 2V2500AH capacity and have a minimum order quantity of 1 unit. The price is negotiable and the packaging details are pallet+carton box. The delivery time is 7-20 days and the payment terms are L/C, T/T, Western Union,Credit Card. The supply ability is 5000 units/week.



Customization:

Welcome to Yangtze, your trusted source for Opzv battery, Batterie Opzv 3000ah, Opzs battery and Batterie Opzs 1500ah products! Our OPZV and OPZS models are certified with CE/TUV/ISO/ROHS/MSDS, and come with a 30 year design life. Our OPZV and OPZS batteries feature a minimum order quantity of 1 unit, a ≤0.5mΩ impedance, an ABS container material, a self discharge rate of ≤3%/month, and an operating temperature range of -40℃ to +60℃. We offer competitive prices and delivery times of 7-20 days, and our supply ability is 5000 units per week. Payment terms include L/C, T/T, Western Union and Credit Card. Packaging is done in Pallet and Carton box.



Support and Services:

We provide technical support and service for OPZV and OPZS products. Our knowledgeable technical support team is available to answer your questions and provide assistance. We also offer product repair and replacement services to ensure your equipment is operating at peak performance.



Packing and Shipping:

OPZV OPZS products are packed and shipped as follows:

  • The product is packed in a cardboard box and then secured in a polyethylene bag.
  • The box is sealed with tape and labeled with product information.
  • The product is then placed in a padded envelope and shipped to the customer.
