Product Details
Place of Origin: China
Brand Name: Yangtze
Certification: CE/TUV/ISO/ROHS/MSDS

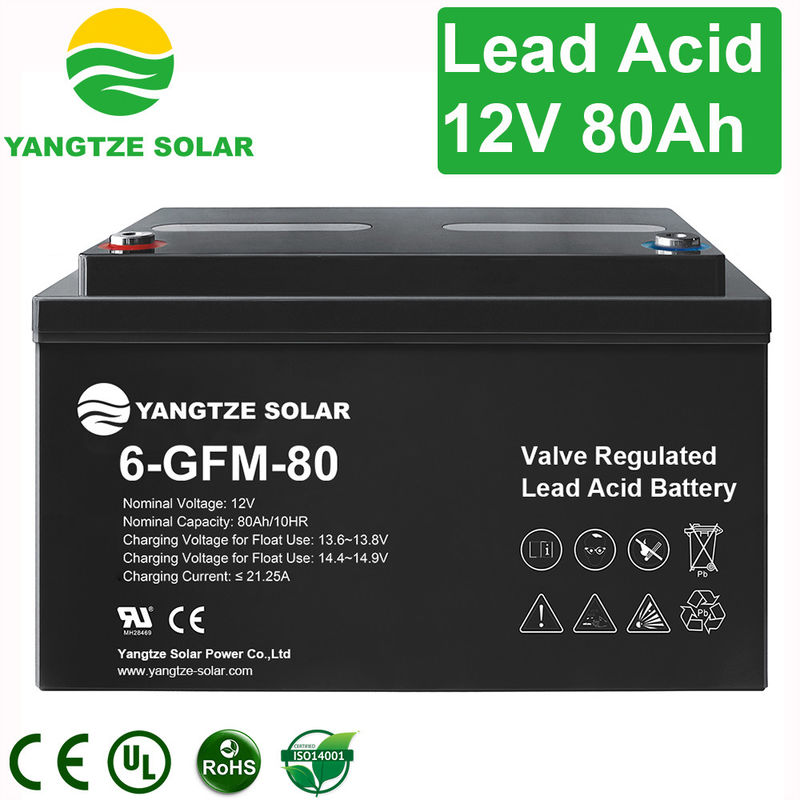

Model Number: 6-GFM-80
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Pallet+Carton box
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 10000 units/week
Operating Temperature: |
-20℃~60℃ |
Cycle Life: |
1000 Times |
Charge Voltage: |
14.4V~14.7V |
Voltage: |
12V |
Float Voltage: |
13.5V~13.8V |
Discharge Cut-off Voltage: |
10.5V~11.0V |
Terminal: |
M8/M10 |
Self-discharge: |
≤3%/Month |
Operating Temperature: |
-20℃~60℃ |
Cycle Life: |
1000 Times |
Charge Voltage: |
14.4V~14.7V |
Voltage: |
12V |
Float Voltage: |
13.5V~13.8V |
Discharge Cut-off Voltage: |
10.5V~11.0V |
Terminal: |
M8/M10 |
Self-discharge: |
≤3%/Month |
AGM Gel Battery is a type of Absorptive Glass Mat Battery (AGM Battery). It features a cycle life of 1000 times, self-discharge rate of ≤3% per month, charge voltage of 14.4V~14.7V, and an operating temperature range of -20℃~60℃. This high performance Absorbed Glass Battery provides superior energy storage and power delivery solutions for a variety of applications.
| 1. Functional Parameter | 5. Environment Temperature | ||
| Nominal Voltage | 12V | Discharge Temperature | -15~50℃ |
| Nominal Capacity (10 hour rate) | 80Ah | Charge Temperature | 0~40℃ |
| Number of Cells | 6cells | Storage Temperature | -15~40℃ |
| 2. Rated Capacity at 25℃ (77° F) | 6. Inner Resistance & Max . Discharge Current | ||
| 10 hour rate (0.1C, 10.8V) | 80Ah | Fully Charged battery at 25℃ (77° F) | 5.8mΩ |
| 3 hour rate (0.25C, 10.8V) | 61.2Ah | Max. Discharge Current | 1200A (5s) |
| 1 hour rate (0.55C, 10.5V) | 44.2Ah | Short Circuit Current | 4000A |
| 3. Capacity affected by Temperature (10 hour rate) | 7. Self-discharge at 25℃ (77° F) | ||
| 40℃ (104° F) | 103% | Capacity after 3 month storage | 91% |
| 25℃ (77° F) | 100% | Capacity after 6 month storage | 82% |
| 0℃ (32° F) | 85% | Capacity after 9 month storage | 73% |
| -15℃ (5° F) | 65% | Capacity after 12 month storage | 64% |
| 4. Dimension and Weight | 8. Constant voltage charging at 25℃ (77° F) | ||
| Length | 330mm | Cyclic use | 14.4~14.9V |
| Width | 173mm | Maximum charging current | 20A |
| Height | 217mm | Temperature compensation | -30mV/℃ |
| Total Height | 222mm | Float use | 13.6~13.8V |
| Reference Weight | 25.5kg | Temperature compensation | -20mV/℃ |
Yangtze AGM Gel Batteries are advanced gel batteries designed to provide reliable, long-lasting power for a variety of applications. With their CE/TUV certification, these batteries are designed to withstand a wide range of temperatures from -20℃~60℃ while providing a regulated float voltage of 13.5V~13.8V and a charge voltage of 14.4V~14.7V. Their terminals are M8/M10 for easy connection. Furthermore, these AGM gel batteries are designed for 1000 recharge cycles, making them an ideal solution for many applications.
The absorbent glass mat (AGM) technology used in Yangtze AGM gel batteries is superior to other types of batteries because it allows for more reliable performance and better cycle life. This technology also helps protect the battery from damage caused by vibration, making it perfect for harsh environments. With its advanced design and superior performance, the Yangtze AGM Gel Battery is an ideal choice for a variety of applications.
Yangtze's AGM Gel Battery is an advanced Gel Battery, an advanced Glass Battery, and an Absorbed Glass Mat Battery. It is certified by CE/TUV, and has a voltage of 12V. The charge voltage and discharge cut-off voltage is 14.4V~14.7V and 10.5V~11.0V respectively. It has a self-discharge rate of ≤3%/Month and an operating temperature of -20℃~60℃.
AGM Gel Battery Packaging and Shipping:
AGM Gel Batteries are packaged in a sturdy, corrugated cardboard box. The box should be lined with foam or other appropriate material for cushioning. The box should also be labeled with the product name, size, and weight. If shipping in a container, multiple batteries should be separated by dividers to prevent contact between them. AGM Gel Batteries should be shipped with appropriate hazardous material labels and protective packaging.
