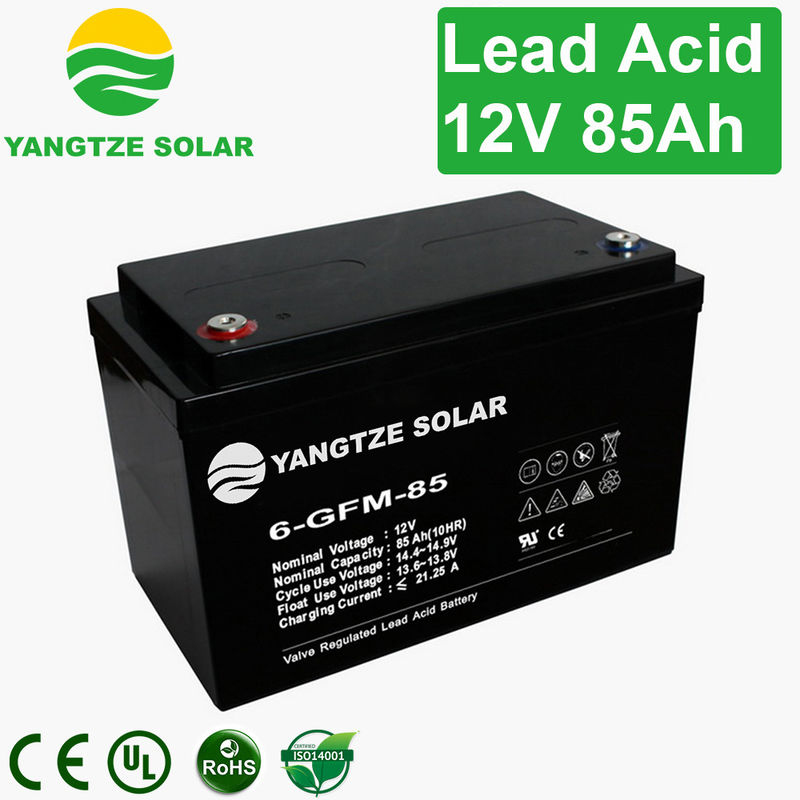

85Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal

Product Details

Place of Origin: China

Brand Name: Yangtze

Certification: CE/TUV/ISO/ROHS/MSDS

Model Number: 6-GFM-85

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiable

Packaging Details: Pallet+Carton box

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union,Credit Card

Supply Ability: 10000 units/week

Get Best Price
Highlight:

85Ah 12v agm

,

12v agm Battery

,

M10 12v 85ah agm battery

Terminal:
M8/M10
Voltage:
12V
Type:
AGM Gel Battery
Float Voltage:
13.5V~13.8V
Discharge Cut-off Voltage:
10.5V~11.0V
Self-discharge:
≤3%/Month
Cycle Life:
1000 Times
Operating Temperature:
-20℃~60℃
Terminal:
M8/M10
Voltage:
12V
Type:
AGM Gel Battery
Float Voltage:
13.5V~13.8V
Discharge Cut-off Voltage:
10.5V~11.0V
Self-discharge:
≤3%/Month
Cycle Life:
1000 Times
Operating Temperature:
-20℃~60℃
85Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal

Product Description:

AGM Gel Battery is an innovative Absorbent Glass Mat Battery that offers superior performance with a float voltage of 13.5V to 13.8V and an operating temperature ranging from -20°C to 60°C. It also features a low self-discharge rate of 3% per month, and is equipped with an M8 or M10 terminal for easy installation. AGM Gel Battery is a reliable Absorptive Glass Mat Battery, and provides superior energy efficiency and long-term use with its high-performance design.



Features:

  • Product Name: AGM Gel Battery
  • Advanced Glass Battery, Absorbent Glass Mat Battery, Absorptive Glass Mat Battery
  • Charge Voltage: 14.4V~14.7V
  • Float Voltage: 13.5V~13.8V
  • Operating Temperature: -20℃~60℃
  • Self-discharge: ≤3%/Month
  • Type: AGM Gel Battery

85Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 0

85Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 185Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 2

1. Functional Parameter 5. Environment Temperature
Nominal Voltage 12V Discharge Temperature -15~50
Nominal Capacity (10 hour rate) 85Ah Charge Temperature 0~40
Number of Cells 6cells Storage Temperature -15~40
2. Rated Capacity at 25 (77° F) 6. Inner Resistance & Max . Discharge Current
10 hour rate (0.1C, 10.8V) 85Ah Fully Charged battery at 25 (77° F) 5.5mΩ
3 hour rate (0.25C, 10.8V) 65.1Ah Max. Discharge Current 1275A (5s)
1 hour rate (0.55C, 10.5V) 47Ah Short Circuit Current 4250A
3. Capacity affected by Temperature (10 hour rate) 7. Self-discharge at 25 (77° F)
40 (104° F) 103% Capacity after 3 month storage 91%
25 (77° F) 100% Capacity after 6 month storage 82%
0 (32° F) 85% Capacity after 9 month storage 73%
-15 (5° F) 65% Capacity after 12 month storage 64%
4. Dimension and Weight 8. Constant voltage charging at 25 (77° F)
Length 330mm Cyclic use 14.4~14.9V
Width 173mm Maximum charging current 21.25A
Height 217mm Temperature compensation -30mV/
Total Height 222mm Float use 13.6~13.8V
Reference Weight 27kg Temperature compensation -20mV/


85Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 385Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 485Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 5

85Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 685Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 785Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 885Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 985Ah 12v AGM Absorptive Glass Mat Battery M8/M10 Terminal 10

Applications:

Yangtze AGM Gel Battery is a high-performance, reliable, and durable battery solution. It is certified by CE and TUV and has a terminal type of M8/M10. It has a voltage of 12V and a charge voltage of 14.4V~14.7V. This battery is also called Advanced Glass Mat Battery or Absorbed Glass Battery and has a wide operating temperature range of -20℃~60℃.

Yangtze AGM Gel Battery is ideal for a variety of applications, such as automotive, marine, and solar/wind power systems. It provides superior performance, reliability, and safety protection in various environments, making it the best choice for high-end, high-power applications. It is also highly resistant to vibration and shock, allowing it to withstand extreme temperatures and provide reliable power output.

Yangtze AGM Gel Battery is an ideal choice for applications requiring long-term, stable power supply. It has excellent safety features, such as automatic voltage regulation, short circuit protection, and low voltage protection. This battery can also be used in harsh environments with high temperature and humidity, making it the perfect solution for a variety of applications.



Customization:

AGM Gel Battery

Brand Name: Yangtze
Place of Origin: China
Certification: CE/TUV
Charge Voltage: 14.4V~14.7V
Operating Temperature: -20℃~60℃
Terminal: M8/M10
Self-discharge: ≤3%/Month
Discharge Cut-off Voltage: 10.5V~11.0V

The AGM (Absorbent Glass Mat) Gel Battery is an advanced battery technology that utilizes a unique combination of absorbent glass mat separators and gel electrolyte. It offers superior performance in terms of cycle life, robustness, and power density compared to traditional lead acid batteries. The AGM Gel Battery is ideal for applications requiring reliable power with deep cycle capabilities such as electric vehicles, solar systems, uninterruptible power supply (UPS), and backup power systems.
