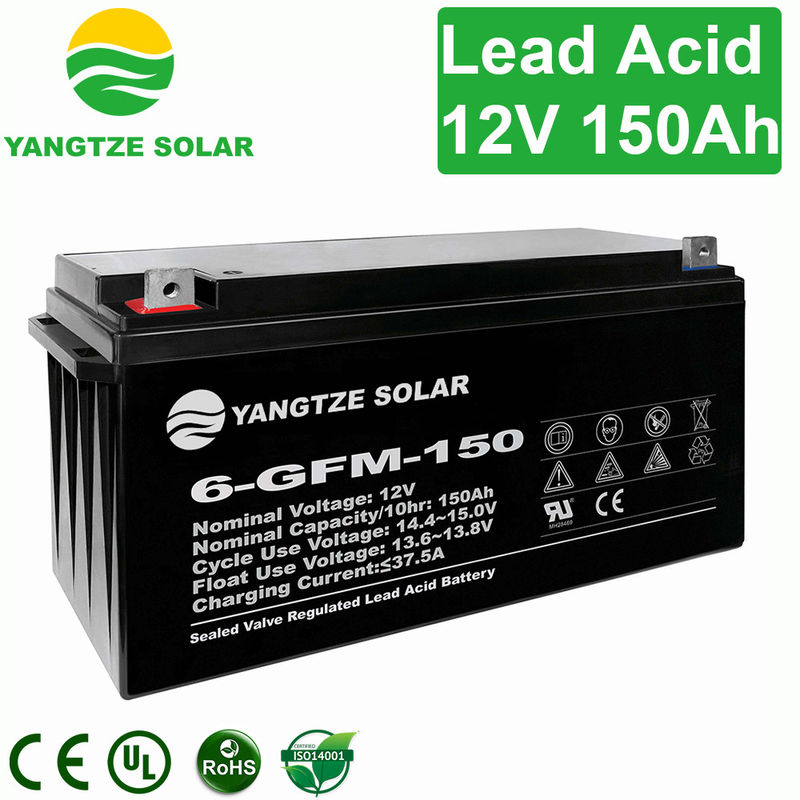

Product Description:
AGM Gel Battery is an Absorptive Glass Mat Battery, also known as Absorbed Glass Battery or Absorbent Glass Mat Battery, with a type of 12V. It is characterized by its charge voltage of 14.4V~14.7V, float voltage of 13.5V~13.8V, and an operating temperature range of -20℃~60℃. This AGM Gel Battery is designed to offer excellent performance and long-lasting durability, making it ideal for a wide range of applications. It features advanced absorption technology that makes it a reliable and efficient power source. In addition, this battery has a maintenance-free design that ensures minimal upkeep and effort. It is also known for its superior safety, with built-in protection against short-circuiting, over-charging, and over-discharging. With its high-quality construction and reliable performance, AGM Gel Battery is the perfect choice for any power supply system.
Features:
- Product Name: AGM Gel Battery
- Charge Voltage: 14.4V~14.7V
- Type: Absorbed Glass Mat (AGM) Battery and Advanced Glass Battery
- Operating Temperature: -20℃~60℃
- Terminal: M8/M10
- Self-discharge: ≤3%/Month
| 1. Functional Parameter |
5. Environment Temperature |
| Nominal Voltage |
12V |
Discharge Temperature |
-15~50℃ |
| Nominal Capacity (10 hour rate) |
150Ah |
Charge Temperature |
0~40℃ |
| Number of Cells |
6cells |
Storage Temperature |
-15~40℃ |
| 2. Rated Capacity at 25℃ (77° F) |
6. Inner Resistance & Max . Discharge Current |
| 10 hour rate (0.1C, 10.8V) |
150Ah |
Fully Charged battery at 25℃ (77° F) |
3.5mΩ |
| 3 hour rate (0.25C, 10.8V) |
115Ah |
Max. Discharge Current |
2250A (5s) |
| 1 hour rate (0.55C, 10.5V) |
82.8Ah |
Short Circuit Current |
7500A |
| 3. Capacity affected by Temperature (10 hour rate) |
7. Self-discharge at 25℃ (77° F) |
| 40℃ (104° F) |
103% |
Capacity after 3 month storage |
91% |
| 25℃ (77° F) |
100% |
Capacity after 6 month storage |
82% |
| 0℃ (32° F) |
85% |
Capacity after 9 month storage |
73% |
| -15℃ (5° F) |
65% |
Capacity after 12 month storage |
64% |
| 4. Dimension and Weight |
8. Constant voltage charging at 25℃ (77° F) |
| Length |
486mm |
Cyclic use |
14.4~14.9V |
| Width |
171mm |
Maximum charging current |
37.5A |
| Height |
241mm |
Temperature compensation |
-30mV/℃ |
| Total Height |
241mm |
Float use |
13.6~13.8V |
| Reference Weight |
43kg |
Temperature compensation |
-20mV/℃ |
Applications:
Yangtze AGM Gel Battery is widely used in various applications such as automobiles, motorcycles, electric tools, UPS systems, solar energy and wind power systems, lawn mowers, and marine equipment. It features excellent deep discharge recovery, excellent discharge performance, low self-discharge rate, high cycle life, and safety. With Brand Name of Yangtze, Place of Origin of China, and Certification of CE/TUV, it has Self-discharge of ≤3%/Month, Discharge Cut-off Voltage of 10.5V~11.0V, Type of AGM Gel Battery, Cycle Life of 1000 Times, and Float Voltage of 13.5V~13.8V. This Absorptive Glass Mat Battery (AGM) or Absorptive Glass Battery (AGB) can provide reliable and efficient power to meet the needs of various high-drain applications.
Customization:
AGM Gel Battery
We provide advanced glass battery, absorbed glass battery and advanced gel battery. Our AGM Gel Battery is designed with brand name Yangtze, and is certified by CE/TUV. It is produced in China. The charge voltage is between 14.4V~14.7V, the float voltage is between 13.5V~13.8V, and the terminal is M8/M10. It has a cycle life of up to 1000 times and voltage of 12V.
Packing and Shipping:
The AGM gel battery is packaged and shipped with the utmost care. All batteries are shipped in sturdy cardboard boxes with protective foam padding. The boxes are clearly labelled with the battery type and size. The boxes are then sealed with heavy-duty packing tape to ensure the batteries are secure during shipping.
In addition to the boxes, the batteries are wrapped in plastic and secured with shrink wrap. All batteries are given a unique serial number for tracking purposes. The serial number is also printed on the box for easy identification.
Once the batteries are packaged, they are shipped via a reliable courier service. All shipments are tracked and insured. Customers are notified via email when their shipment is dispatched and can follow its progress online.
