Home > products > Mono Facial Solar Panel > Shingled Solar Panels 540w 545w 550w 555w 1000w Solar Cell Off Grid System

Shingled Solar Panels 540w 545w 550w 555w 1000w Solar Cell Off Grid System

Product Details

Place of Origin: China

Brand Name: Yangtze

Certification: CE/TUV/ISO/ROHS/INMETRO

Model Number: YS550M-144

Payment & Shipping Terms

Minimum Order Quantity: 30 pieces

Price: negotiable

Packaging Details: Pallet+Carton Box

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union,Credit Card

Supply Ability: 20000 pieces/Week

Get Best Price
Highlight:

Mono Shingled Solar Panels

,

540w Shingled Solar Panels

,

550w Off Grid Solar System

Frame:
Anodized Aluminium Alloy
Junction Box:
IP68 Rated
Solar Cell:
Half Cell 10BB
Glass:
3.2mm High Transmission Low Iron Tempered Glass
Backing Color:
White Or Black Or Transparent
OEM Order:
Acceptable
Class:
Grade A
Rated Power:
550W
Dimension:
2274*1134*35mm
Efficiency:
21.33%
Frame:
Anodized Aluminium Alloy
Junction Box:
IP68 Rated
Solar Cell:
Half Cell 10BB
Glass:
3.2mm High Transmission Low Iron Tempered Glass
Backing Color:
White Or Black Or Transparent
OEM Order:
Acceptable
Class:
Grade A
Rated Power:
550W
Dimension:
2274*1134*35mm
Efficiency:
21.33%
Shingled Solar Panels 540w 545w 550w 555w 1000w Solar Cell Off Grid System

550W Mono-facial Solar Panel MBB Low Iron Tempered Glass Reduced Hot Spot Loss

Product Description:

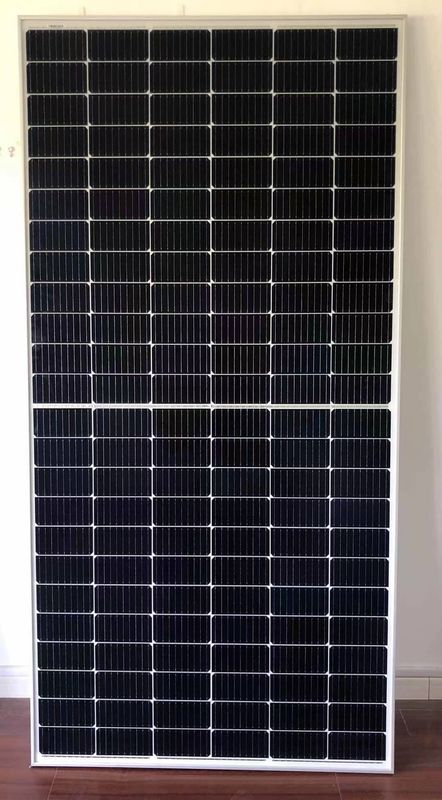

From the front view of solar panel, we can also find that solar panel has many busbars, total 10 busbars to make sure the better working performance. Then look at the back view of solar panel, we can see that it has junction box. Our junction box is IP68 rated. IP means Ingress protection, 6 is highest dust level, 8 is highest waterproofing grade. You can also find solar panel nameplate, including basic infos of solar panel,size, voltage, current, etc. Look at this, it is mounting hole on the frame, they are used to install solar panels.



Features:

  • Mono-facial Solar Panel
  • Single-sided Solar Panel
  • Half Cut Solar Cell
  • 25 Years Warranty
  • IP68 Junction Box
  • Mono-crystalline Cell



Applications:

The Yangtze Mono-facial Solar Panel is a single-sided sun panel that provides a reliable and cost-effective source of renewable energy. This mono-facial solar paneling is made with a durable anodized aluminum alloy framework and features half cut solar cells for maximum energy efficiency. It is designed to be easy to install and requires minimal maintenance, making it the perfect choice for both residential and commercial applications. With a minimum order quantity of only one, and a delivery time of 10-20 days, you can be sure of receiving the highest quality solar paneling in a timely manner. The Yangtze Mono-facial Solar Panel also comes with a 25-year warranty and MC4 connector type for added convenience and peace of mind.



Customization:

Yangtze Mono-facial Solar Panel is an efficient single-sided sun panel designed and manufactured in China. Our Mono-facial Solar Panel has a minimum order quantity of only 1, with a delivery time of 10-20 days. It has a solar cell of Half Cut, a temperature range of -40°C to +85°C, a cell type of Mono-crystalline, a connector type of MC4, and a junction box of IP68. This Mono-facial Solar Panel is one of the most efficient single-sided solar panels available on the market today.



Support and Services:

Mono Facial Solar Panel provides technical support and services, including:

  • A dedicated customer support team available 24/7 to answer questions and provide assistance.
  • A comprehensive product warranty for all Mono Facial Solar Panels.
  • A secure online portal for customers to track and manage their orders.
  • Regular product updates and maintenance releases.
  • Comprehensive training programs and resources.



Packing and Shipping:

Mono Facial Solar Panel Packaging and Shipping

All Mono Facial Solar Panel orders are packaged in durable cardboard boxes to ensure safe delivery. All packages are shipped with the appropriate shipping carrier.

For US orders, we offer free shipping with USPS Priority Mail. This service typically takes 1-3 business days for delivery.

For international orders, we offer free shipping with USPS Priority Mail International. This service typically takes 6-10 business days for delivery.

For expedited shipping, we offer USPS Express Mail. This service typically takes 1-2 business days for delivery.

If you have any questions about our packaging and shipping services, please feel free to contact us.

```

FAQ:

Q: What is the brand name of Mono Facial Solar Panel?
A: The brand name of Mono Facial Solar Panel is Yangtze.
Q: Where is Mono Facial Solar Panel from?
A: Mono Facial Solar Panel is from China.
Q: What is the minimum order quantity for Mono Facial Solar Panel?
A: The minimum order quantity for Mono Facial Solar Panel is 1.
Q: How long will it take to deliver Mono Facial Solar Panel?
A: It will take 10-20 days to deliver Mono Facial Solar Panel.
Q: Does Mono Facial Solar Panel come with any warranty?
A: Mono Facial Solar Panel does not come with any warranty.

Shingled Solar Panels 540w 545w 550w 555w 1000w Solar Cell Off Grid System 0

Model Type
YS550M-144
YS560M-144
YS570M-144
YS580M-144
YS600M-144
Rated Maximum Power at STC
550W
560W
570W
580W
600W
Maximum Power Voltage (Vmp)
40.90V
41.10V
41.30V
41.50V
42.10V
Maximum Power Current (Imp)
13.45A
13.63A
13.80A
13.98A
14.25A
Open Circuit Voltage ( Voc)
49.62V
49.72V
49.82V
49.91V
49.99V
Short Circuit Current (Isc)
14.03A
14.33A
14.62A
14.81A
14.97A
Module Efficiency
21.33%
21.72%
22.10%
22.49%
23.27%
Working Conditions&Working Conditions
Operating Temperature
-40°c~+85°c
Maximum System Voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse
25A
Power Tolerance
0~+5W
Temperature Coefficient of Pmax
-0.35%/°c
Temperature Coefficient of Voc
-0.29%/°c
Temperature Coefficient of Isc
+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S
