Product Description:

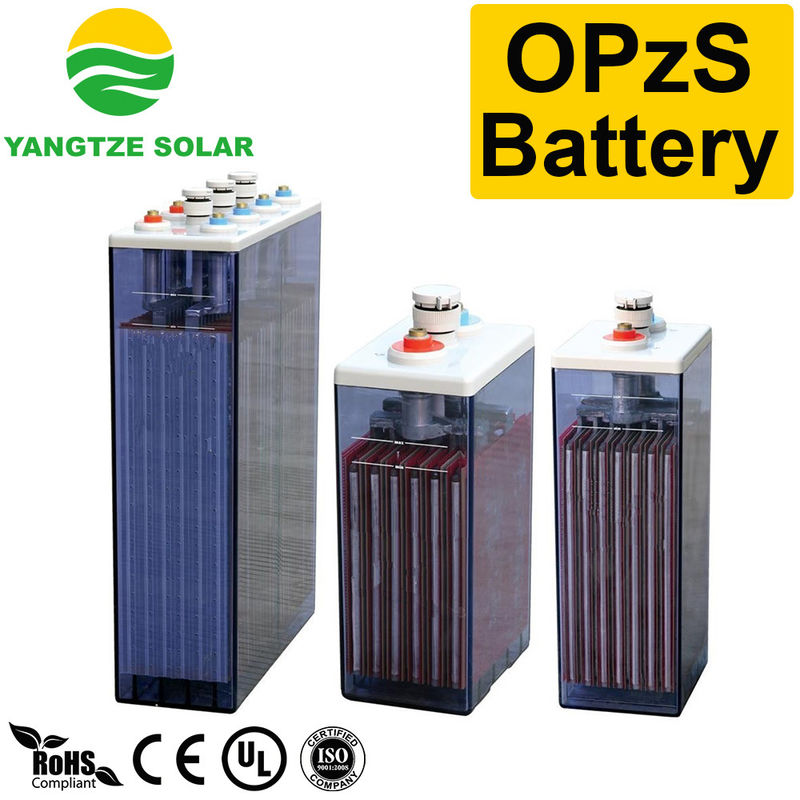

OPZV OPZS is a state-of-the-art tubular battery specifically designed to meet the demands of today's modern power systems. With a wide operating temperature range of -40℃ to +60℃, this battery is built to last for up to 30 years with a capacity range of 200Ah-3000Ah. Featuring a robust container material made of ABS, the OPZV OPZS battery is designed to provide reliable power for a wide range of applications. Whether you're looking for a reliable battery for your home, business, or industrial application, the OPZV OPZS battery provides long-lasting performance and durability. With its advanced tubular battery design and long design life, the OPZV OPZS battery is the perfect choice for any application, especially those that require a high-capacity battery such as a 3000Ah battery. With its superior performance and rugged construction, the OPZV OPZS battery is the ideal choice for those seeking a reliable and cost-effective power solution.
| 1. Functional Parameter |
5. Environment Temperature |
| Nominal Voltage |
2V |
Discharge Temperature |
-15~55℃ |
| Nominal Capacity (10 hour rate) |
1000Ah |
Charge Temperature |
-0~45℃ |
| Designed Floating Life 20℃ (68° F) |
15~20years |
Storage Temperature |
-15~45℃ |
| 2. Rated Capacity at 20℃ (68° F) |
6. Inner Resistance & Max . Discharge Current |
| 5 hour rate (177.6A, 1.75V/cell) |
888.0Ah |
Fully Charged battery at 20℃ (68° F) |
0.28mΩ |
| 3 hour rate (257A, 1.75V/cell) |
771.0Ah |
Max. Discharge Current |
8000A (5s) |
| 1 hour rate (571A, 1.60V/cell) |
571Ah |
  |
  |
| 3. Capacity affected by Temperature (10 hour rate) |
7. Self-discharge at 20℃ (68° F) |
| 40℃ (104° F) |
103% |
Capacity after 3 month storage |
91% |
| 25℃ (77° F) |
100% |
Capacity after 6 month storage |
82% |
| 0℃ (32° F) |
86% |
Capacity after 9 month storage |
73% |
| -15℃ (5° F) |
70% |
Capacity after 12 month storage |
64% |
| 4. Dimension and Weight |
8. Constant voltage charging at 20℃ (68° F) |
| Length |
233mm |
Cyclic use |
2.30~2.40V |
| Width |
210mm |
Maximum charging current |
100A |
| Height |
646mm |
Temperature compensation |
-5mV/℃ |
| Total Height |
701mm |
Float use |
2.23~2.25V |
| Reference Weight Without Electrolyte |
57.4kg |
Temperature compensation |
-3mV/℃ |
Features:
- Product Name: OPZV OPZS
- Design Life: 30 Years
- Float Voltage: 2.25-2.35V/cell
- Operating Temperature Range: –40℃ To +60℃
- Battery Type: OPZV&OPZS
- Container Material: ABS
- Capacity: 3000Ah
- Keywords: Batterie OPZV 3000Ah, OPZV Battery, OPZS Battery, ABS Material
Applications:
The Yangtze OPZV-2500 OPZS 2V series batteries are designed for superior performance and maximum reliability. They are ideal for a wide range of applications, such as standby power, renewable energy systems, solar and wind power systems, and telecom applications. Featuring high-quality components and materials, the batteries are certified with CE/TUV/ISO/ROHS/MSDS and come with a terminal type of M6/M8 and container material of ABS. The capacity range is from 200Ah-3000Ah, with a float voltage of 2.25-2.35V/cell and impedance ≤0.5mΩ. The minimum order quantity is one unit and the price is negotiable. The delivery time is 7-20 days and payment terms include L/C, T/T, Western Union, and Credit Card. With a supply ability of 5000 units/week, the Yangtze OPZV-2500 OPZS 2V series batteries are the perfect solution for your power needs.
Customization:
Yangtze OPZV/OPZS 2V Series Battery
Brand Name: Yangtze
Model Number: OPZV-2500
Place of Origin: China
Certification: CE/TUV/ISO/ROHS/MSDS
Minimum Order Quantity: 1 unit
Price: negotiable
Packaging Details: Pallet+Carton box
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union,Credit Card
Supply Ability: 5000 units/week
Self Discharge: ≤3%/month
Operating Temperature Range: –40℃ To +60℃
Terminal Type: M6/M8
Capacity Range: 200Ah-3000Ah
Design Life: 30 Years
Yangtze OPZV/OPZS 2V series batteries are highly reliable and long-lasting, featuring CE certification, TUV certification, ISO certification, ROHS certification, MSDS certification, L/C payment, T/T payment, western union payment, credit card payment, 200Ah-3000Ah capacity range, –40℃ to +60℃ operating temperature range, M6/M8 terminal type, and ≤3%/month self discharge.
Support and Services:
Technical support and services for OPZV OPZS include:
- 24/7 online customer service
- Regular maintenance and repair services
- Software and hardware updates
- Troubleshooting and diagnostics
- Free technical support
- Installation and setup assistance
- Warranty and insurance coverage
Packing and Shipping:
OPZV OPZS Packaging and Shipping:
Our OPZV OPZS products are carefully packaged to ensure safe transportation. Each order is packed in a cardboard box, with foam-in-place packaging for extra protection. Before shipping, we inspect our products for any possible defects. For international orders, we use reliable shipping carriers such as DHL, FedEx, and UPS.
