Yangtze Solar Power Co., Ltd.
products
products
Home > products > Mono Facial Solar Panel > 500w Photovoltaic shingled Mono Facial Solar Panel Waterproof For Roof Tiles

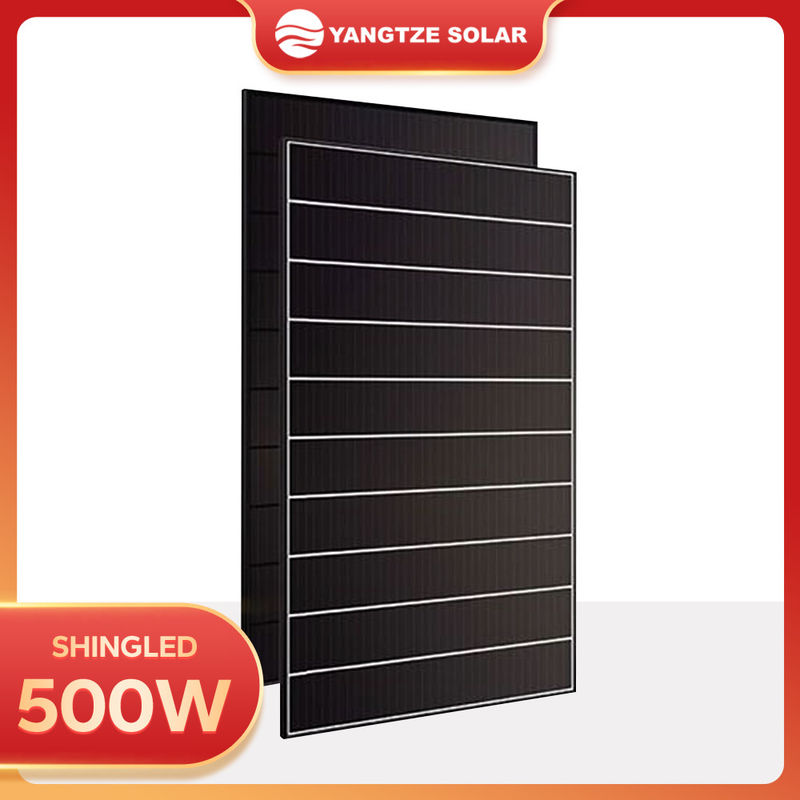

500w Photovoltaic shingled Mono Facial Solar Panel Waterproof For Roof Tiles

Product Details

Place of Origin: China

Brand Name: Yangtze

Certification: CE/TUV/ISO/ROHS/INMETRO

Model Number: YS540M-432

Payment & Shipping Terms

Minimum Order Quantity: 30 pieces

Price: negotiable

Packaging Details: Pallet+Carton Box

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union,Credit Card

Supply Ability: 20000 pieces/Week

Get Best Price
Highlight:

Waterproof Mono Facial Solar Panel

,

Photovoltaic Mono Facial Solar Panel

,

500w shingled mono solar panel

Frame:
Anodized Aluminium Alloy
Junction Box:
IP68 Rated
Solar Cell:
Half Cell 10BB
Glass:
3.2mm High Transmission Low Iron Tempered Glass
Backing Color:
White Or Black Or Transparent
OEM Order:
Acceptable
Class:
Grade A
Rated Power:
550W
Dimension:
2279*1134*35mm
Efficiency:
21.33%
Frame:
Anodized Aluminium Alloy
Junction Box:
IP68 Rated
Solar Cell:
Half Cell 10BB
Glass:
3.2mm High Transmission Low Iron Tempered Glass
Backing Color:
White Or Black Or Transparent
OEM Order:
Acceptable
Class:
Grade A
Rated Power:
550W
Dimension:
2279*1134*35mm
Efficiency:
21.33%
500w Photovoltaic shingled Mono Facial Solar Panel Waterproof For Roof Tiles

500w Solar Roof Tiles Photovoltaic Black New Design Panel Shingles Companies


Product Description:

Introducing the Mono-facial Solar Panel, our advanced mono-facial solar paneling system designed to provide superior energy generation in any weather. Our solar paneling is made from mono-crystalline cells with a temperature range of -40℃ to +85℃ and features an IP68 Junction Box for maximum protection against moisture and dust. And with a 25 year warranty, you can be sure your Mono-facial Solar Panel will be providing reliable energy for years to come.

The Mono-facial Solar Panel is the perfect choice for anyone looking to maximize their solar energy output with the highest quality materials available. Our Mono-facial Solar Paneling offers rugged durability and superior energy efficiency, making it the perfect choice for any solar energy application.



Features:

  • Product Name: Mono-facial Solar Panel
  • Frame Material: Anodized Aluminum Alloy
  • Cell Type: Mono-crystalline
  • Warranty: 25 Years
  • Temperature Range: -40℃~+85℃
  • Junction Box: IP68



Applications:

The Mono-facial Solar Panel from Yangtze is a single-sided solar panel designed to provide superior performance. It has a temperature range of -40℃~+85℃ and a minimum order quantity of 1. The connector type is MC4 and the cell type is mono-crystalline, with an IP68 junction box. Delivery time is 10-20 days. The Mono-facial Solar Panel from Yangtze is perfect for applications in commercial and residential buildings, providing reliable solar energy for a variety of purposes. It is also ideal for solar paneling projects, as it offers a powerful, efficient, and cost-effective alternative to traditional solar paneling solutions. With the Mono-facial Solar Panel from Yangtze, you can be sure to get the best performance from your solar paneling project.



Customization:

Mono-facial Solar Panel
  • Brand Name: Yangtze
  • Place of Origin: China
  • Minimum Order Quantity: 1
  • Delivery Time: 10-20 days
  • Frame Material: Anodized Aluminum Alloy
  • Connector Type: MC4
  • Junction Box: IP68
  • Cell Type: Mono-crystalline
  • Warranty: 25 Years

Yangtze's Mono-facial Solar Panel is designed for residential, commercial, and industrial use. It has an anodized aluminum alloy frame, a MC4 connector, an IP68 junction box, and a mono-crystalline cell. It comes with a 25-year warranty. The minimum order quantity is 1 and the delivery time is 10-20 days.



Packing and Shipping:

Packaging and Shipping for Mono-facial Solar Panel

Mono-facial solar panel is a type of solar panel which requires particular packaging and shipping. The following outlines the steps for packing and shipping a mono-facial solar panel.

Steps:
  • The mono-facial solar panel should be thoroughly inspected prior to packaging.
  • The panel should be cleaned and dried before being packaged.
  • It should be wrapped in a protective material to prevent any scratches or damage during transit.
  • The panel should be placed into a cardboard box and secured with packing material.
  • The box should be labeled with the product name, "Mono-facial Solar Panel", and the shipping address.
  • The box should then be sealed and sent for shipping.

500w Photovoltaic shingled Mono Facial Solar Panel Waterproof For Roof Tiles 0

500w Photovoltaic shingled Mono Facial Solar Panel Waterproof For Roof Tiles 1

Model Type
YS480M-372
YS490M-372
YS500M-372
Rated Maximum Power at STC
480W
490W
500W
Maximum Power Voltage (Vmp)
39.75V
40.29V
40.81V
Maximum Power Current (Imp)
12.07A
12.16A
12.25A
Open Circuit Voltage ( Voc)
48.3V
48.96V
49.62V
Short Circuit Current (Isc)
12.92A
13.01A
13.1A
Module Efficiency
>22.5%
>22.9%
>23.3%
Working Conditions&Working Conditions
Glass Thickness
3.2mm
Operating Temperature
-40°c~+85°c
Maximum System Voltage
DC 1000V(IEC) / 1500V(IEC)
Maximum Series Fuse
25A
Power Tolerance
0~+5W
Temperature Coefficient of Pmax
-0.35%/°c
Temperature Coefficient of Voc
-0.29%/°c
Temperature Coefficient of Isc
+0.048%/°c
STC(Standard Testing Conditions): lrradiance 1000W/m2 , Cell Temperature 25 'C, Spectra at AMl.5
NOCT (Nominal Operating Cell Temperature): lrradiance 800W/m2 , Ambient Temperature 20 'C, Spectra at AMl.5, Wind at l m/S



500w Photovoltaic shingled Mono Facial Solar Panel Waterproof For Roof Tiles 2
