Deep Cycle Power Wall Lithium Battery 48V 150Ah Wall Mounted

Product Details

Place of Origin: China

Brand Name: Yangtze

Certification: CE/TUV/ISO/ROHS/MSDS/UN38.3

Model Number: LFeLi-48150W

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiable

Packaging Details: Pallet+Carton box

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union,Credit Card

Supply Ability: 10000 units/week

Get Best Price
Highlight:

Deep Cycle Powerwall Lithium Battery

,

48V 150Ah Powerwall Lithium Battery

,

Deep Cycle 48v lifepo4 powerwall

Type:
Li-Ion/lithium/lifepo4
Dimension:
442*510*155mm
Voltage:
48V
Capacity:
150Ah
OEM:
Yes
Screen:
Yes
Package:
Carton Box
Parallel:
15 Units
Commmunication:
RS485/Can
BMS:
Yes
Type:
Li-Ion/lithium/lifepo4
Dimension:
442*510*155mm
Voltage:
48V
Capacity:
150Ah
OEM:
Yes
Screen:
Yes
Package:
Carton Box
Parallel:
15 Units
Commmunication:
RS485/Can
BMS:
Yes

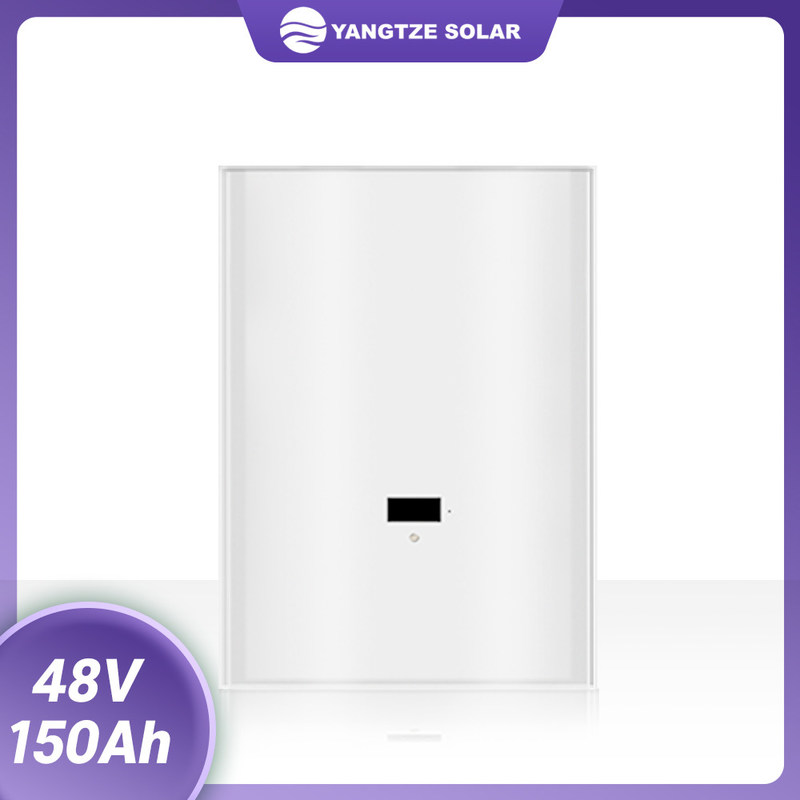

Deep Cycle Power Wall Lithium Battery 48V 150Ah Wall Mounted

48V 150Ah Power Wall Lithium Battery Wall-Mounted 6000 Times Deep Cycles Lifespan

Product Description:

Powerwall is a home lithium battery designed for residential energy storage. With its advanced rechargeable lithium battery, Powerwall is designed to store energy from solar or other renewable sources, allowing you to use renewable energy whenever you need it. The battery is designed to be installed both indoors and outdoors, and its operating temperature range is from -20°C to 50°C, and operating humidity is 0-100% non-condensing. Powerwall also comes with a 10 year warranty, ensuring your residential energy storage system is reliable and secure. With Powerwall, you can store and use renewable energy in your home, allowing you to reduce your reliance on traditional energy sources.



Features:

  • Product Name: Powerwall Lithium Battery
  • Residential Energy Storage: Yes
  • Residential Battery System: Yes
  • Home Powerwall Battery: Yes
  • Safety Features: Integrated Thermal Management And Safety Systems
  • Communication: Wi-Fi, Ethernet, And Cellular
  • Operating Temperature: -20°C To 50°C
  • Installation: Indoor Or Outdoor



Electrical
Characteristics
Nominal Voltage
51.2V
Nominal Capacity
150Ah
Energy
7680Wh
Internal Resistance(AC)
≤20mΩ
Cycle Life
>3500 cycles @ 1C 80% DOD
Months Self Discharge
<3%
Efficiency of Charge
100% @0.5C
Efficiency of Discharge
96~99% @1C

Standard Charge
Charge Voltage
58.4±0.2V
Charge Mode
0.2C to 58.4V, then 58.4V, charge current to 0.02C(CC/CV)
Charge Current
45A
Max. Charge Current
75A
Charge Cut-off Voltage
59.4±0.2V


Standard Discharge
Continuous Current
100A
Max.Pulse Current
150A(<3s)
Discharge Cut-off Voltage
40V

Environmental
Charge Temperature
0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature
-20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity
IP Class
IP65

Mechanical
Plastic Case
ABS/Metal
Approx.Dimensions
790*510*175mm/Customized
Approx.Weight
80kg

Deep Cycle Power Wall Lithium Battery 48V 150Ah Wall Mounted 0Deep Cycle Power Wall Lithium Battery 48V 150Ah Wall Mounted 1

Applications:

Powerwall Lithium Battery is an advanced residential energy storage solution that provides a reliable and efficient way to store solar power. It is a lithium battery storage system that is designed to be compatible with Tesla Solar and other solar providers. This home powerwall battery can be installed indoors or outdoors and has an operating temperature range of -20°C to 50°C. With built-in Wi-Fi, Ethernet, and cellular communication capabilities, this solar power battery offers a reliable 10-year warranty and is perfect for homeowners looking for an efficient and reliable energy storage solution.



Customization:

Powerwall Lithium Battery

Powerwall Lithium Battery is an advanced lithium-ion home powerwall battery designed to provide homeowners with a reliable and safe energy storage solution. With its integrated thermal management and safety systems, Powerwall is able to provide long-term storage for solar energy and other renewable energy sources, all while operating safely in temperatures ranging from -20°C to 50°C. Compatible with Tesla Solar and other solar providers, Powerwall is ideal for both indoor and outdoor installation. Backed up by a 10 year warranty, Powerwall is the perfect solution for anyone looking for a secure and reliable lithium battery storage system.



Support and Services:

Powerwall Lithium Battery offers technical support and service for customers to ensure the highest quality of experience. Technical support is available 24 hours a day, 7 days a week, 365 days a year. Customers can call for help with troubleshooting, installation, or maintenance. Service is available to help customers with repairs, maintenance, and upgrades. Standard warranty coverage includes parts and labor for a period of 10 years.



Packing and Shipping:

Packaging and Shipping for Powerwall Lithium Battery

Powerwall Lithium Battery is a powerful and reliable source of energy storage. It is designed to provide a safe, cost-effective, and sustainable energy solution. To ensure that the product reaches its intended destination safely, Powerwall Lithium Battery must be properly packaged and shipped.

Packaging

Powerwall Lithium Battery is securely packaged in a box made of corrugated cardboard. The box is designed to protect the battery from external impacts and ensure that it is delivered in perfect condition. The box also includes protective foam and/or bubble wrap to absorb shock and further protect the product during transit.

Shipping

Powerwall Lithium Battery can be shipped by ground, air, or sea. The preferred method of shipping is by ground, as it is the most cost-effective option. However, air or sea shipments may be necessary depending on the destination. When shipping by air or sea, the battery must be securely packaged in an approved container and marked according to international regulations.
