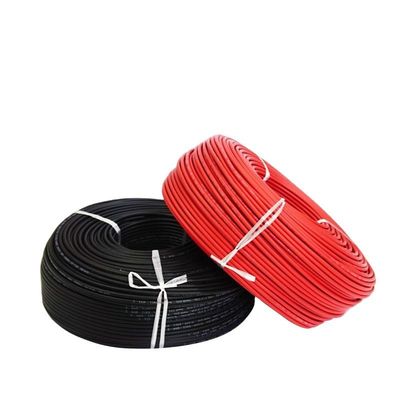

Product Details:
|
| Name: | Solar System Accessories 6mm2 ,1500v DC Twin Color Single Core Solar Pv Cable 10mm2 | Color: | Black |
|---|---|---|---|
| Specification: | Normal | Application: | Home |
| Type: | High Voltage, PV1-F 1x6mm2 | Certificate: | ISO9001/TUV/CE |
| Core: | Single Core | Insulation Material: | Xlpe |
| Conductor: | Tinned Copper | Packing: | 100 Meters/roll |
| High Light: | 1500V Solar System Accessories,6mm2 Solar System Accessories,10mm2 solar pv cable |
||
AC 6,5 KV • Minimum bending radius fixed installation 5x cable Ø
Cable structure
Tinned copper conductor, toIEC 60228 C1.5
1, Core insulation of special cross-lhiked compound
2. Sheath of special cross- linked compound •Sheath colour:see table below
• Double-insulated
• complies protection class Tests
• Electrical tests:EN50395,EN 60228
• Halogen-free: Annex B of EN 50525-1
• Ozone resistance:0EN50396
• Flame retardant: IEC 60332-1-2
•Smoke densitv: IEC 61034
•UV res.;EN50289-4-17 Approvals
•2 PfG1169 • CQC NB/T 42073
|
Part no.
|
No.cores x
cross-sec. mm²
|
Conduct No.and dia.
N/mm
|
Sheath
colour
|
Outer Diamete
|
Rated current at 60℃(A)
|
Weight
app.kg/km
|
AWG-No.
|
|
7030-1
|
1×1.5
|
30/0.25
|
black
|
4.8
|
30
|
41
|
16
|
|
7030-2
|
1×1.5
|
30/0.25
|
rea
|
4.8
|
30
|
41
|
16
|
|
7030-3
|
1×2.5
|
49/0.25
|
black
|
5.3
|
41
|
48
|
14
|
|
7030-4
|
1×2.5
|
49/0.25
|
rea
|
5.3
|
41
|
48
|
14
|
|
7030-5
|
1×4
|
56/0.285
|
black
|
5.7
|
55
|
63
|
12
|
|
7030-6
|
1×4
|
56/0.285
|
rea
|
5.7
|
55
|
63
|
12
|
|
7030-7
|
1×6
|
84/0.285
|
black
|
6.3
|
70
|
84
|
10
|
|
7030-8
|
1×6
|
84/0.285
|
rea
|
6.3
|
70
|
84
|
10
|
|
7030-9
|
1×10
|
80/0.40
|
black
|
7.6
|
98
|
137
|
8
|
|
7030-10
|
1×10
|
80/0.40
|
rea
|
7.6
|
98
|
137
|
8
|
|
7030-11
|
1×16
|
126/0.40
|
black
|
9
|
132
|
210
|
6
|
|
7030-12
|
1×16
|
126/0.40
|
rea
|
9
|
132
|
210
|
6
|
|
7030-13
|
1×25
|
196/0.40
|
black
|
11
|
176
|
296
|
4
|
|
7030-14
|
1×25
|
196/0.40
|
rea
|
11
|
176
|
296
|
4
|
Q : Where are the photovoltaic cables used?
A: Photovoltaic cables are used to connectsolar cell modules and invefters.
Q: How to choose the type and specification of photovoltaic cable?
A: Select UL4730 Standard PV WIRE for the UL standard area; Select PV CABLE(or TUV 2PFG 1169) from standard EN50618 for the EN standard area, The product models are PV Wire**AWG/h1z2z1-k**mm2(or pv1-f)
Q: What is the difference between hlz2z2-k and pv1-f?
A: Hlz2z2-k rated voltage is higher than pv1-f, the former is 1500 V, the latter is 1000v.
Q: Which size of cables should l choose?
A: 4mm2(12AWG)can be used no matter how many SOLAR panels are in series and the single string output current does not exceed 15A. After the convergence of several branches of the main output, depending on the situation, can consult us.
Q: How long is the service life of photovoltaic cable?
A: Without additional protection, it can be used for more than 20 years in outdoor ventilation and dry condtions.
Q:What other features do photovoltaic cables have?
A: Conditions of use -40C~+90C, low smoke, halogen free, flame retardant, anti ultraviolet radiation.
Q: How to order?
A: After confirmling product name,model, specification, quantity and packing method with our business manager,we will send PI to you.
