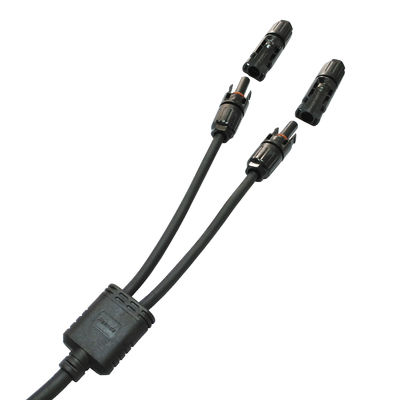

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors

Large Image : Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors

Product Details:

Place of Origin:	china
Brand Name:	king sun
Certification:	CE/TUV/ISO900/ROSH
Model Number:	GT-MC4

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 402631cm,
Delivery Time:	7
Payment Terms:	T/T
Supply Ability:	2000 Set/Sets per Day

Contact Now

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors

Description

Name:	14Awg 30Ft Solar Extension Cable With Male Female Connector Double End Solar System Accessories	Color:	Black
Specification:	Normal	Application:	Power Station
Rated Voltage:	1000V / 1500V DC	Protection Degree:	IP67
Cable Length:	Customized	Rated Current:	30A
Ambient Temperat:	-40℃~+90℃
High Light:	30Ft Solar System Accessories , 1500V Solar System Accessories , 14Awg Solar Panel Extension Cable With Mc4 Male To Female Connectors

14Awg 30Ft Solar Extension Cable With Male Female Connector Double End Solar System Accessories

1, Description:

High quality Solar Connector

Features:
1) This connector is specifically designed for connecting photovoltaic system components inside and outside of building and equipment.

2) Load capability with big current and high voltage.

3) Lower contact resistant.

4) Design of waterproof and dustproof

5) Excellent performances of high-low temperature ,fireproof, anti-ultraviolet

2, Parameters:

Product Name:	Solar Extension Cable
Type	DC-DC
Rated Voltage	1000V / 1500V DC
Rated Impluse Voltage	8000V
Rated Insulation Voltage	6000V
Rated Current	30A
Standard	EN50618 / EN62852
Protection Degree	IP67
Contact Resistance	≤0.5mΩ
Pollution Degree	2
Ambient Temperature	-40℃~+85℃
Cable Length	Customized
Insulation Material	PC EXL9330 / XLPE
Flame Class	UL94-V0

3, Usage Solar System Accessories :

Solar home system,Greenhouse farming, Transportation field lighting, Fishery farming, Parking charging station, Commercial building, Deep well drinking/irrigation.Marine research.Petroleum pipeline, etc

4, FAQ

Q1: How to choose the type and specification of Solar PV Cable?

A1: Select UL4730 standard PV WIRE for the UL standard area; Select EN50618 standard for the EN standard area.

Q2:What is the difference between H1Z2Z2-K and PV1-F?

A2: Different from the rated voltage, H1Z2Z2-K’s rated voltage is 1500V, and PV1-F’s rated voltage is 1000V.

Q3: How about the quality?

A3: Our products has TUV, CE certification, so quality can be guaranteed and price will be very competitive. The cable and connector’s life span are 25 years, and we have the 5 years warranty.

Q4: What other features do Solar PV Cable cables have?

A4: Conditions of use -40C~+90C, low smoke, halogen free, flame retardant, anti ultraviolet radiation.

Q5: How about your cable printing?

A5: Normal we use printing with our company name, and have the neutral printing, also can do the custom printing according to the clients’requirement.

Q6: How about the package of your cable and connector?

A6: For Cable, have 100M/Roll, 250M/Roll, 500M/Roll, also can customize the package; For Connector, usually 100 pairs/bag and 500 pairs/CTN, now we have new packing for the small quantity, like 1 pair/Bag, 5 pairs/bag, also can customize the package.

5, More picture:

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors 0

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors 1

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors 2

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors 3

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors 4

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors 14

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors 15

Rated Voltage	1000V DC
Rated Impluse Voltage	8000V
Rated Insulation Voltage	6000V
Rated Current	30A
Standard	IEC62852 / EN62852
Protection Degree	IP67
Contact Resistance	≤0.5mΩ
Pollution Degree	2
Ambient Temperature	-40℃~+85℃
Cable Cross Section Area	2.5mm², 4.0mm², 6.0mm²
Insulation Material	PC EXL9330
Flame Class	UL94-V0

Product Description

Solar panel junction box Solar Connector

High quality PV004-EN Solar Connector

Features:
1) This connector is specifically designed for connecting photovoltaic system components inside and outside of building and equipment .

2) Load capability with big current and high voltage.

3) Lower contact resistant.

4) Design of waterproof and dustproof

5) Excellent performances of high-low temperature ,fireproof, anti-ultraviolet

Solar home system,Greenhouse farming, Transportation field lighting, Fishery farming, Parking charging station, Commercial building, Deep well drinking/irrigation, Marine

research, Petroleum pipeline, etc

Packaging & Shipping

Solar System Accessories , Solar Panel Extension Cable With MC4 Male To Female Connectors 17

FAQ

Q1: How to choose the type and specification of Solar PV Cable?

A1: Select UL4730 standard PV WIRE for the UL standard area; Select EN50618 standard for the EN standard area.

Q2:What is the difference between H1Z2Z2-K and PV1-F?

A2: Different from the rated voltage, H1Z2Z2-K’s rated voltage is 1500V, and PV1-F’s rated voltage is 1000V.

Q3: How about the quality?

A3: Our products has TUV, CE certification, so quality can be guaranteed and price will be very competitive. The cable and connector’s life span are 25 years, and we have the 5 years warranty.

Q4: What other features do Solar PV Cable cables have?

A4: Conditions of use -40C~+90C, low smoke, halogen free, flame retardant, anti ultraviolet radiation.

Q5: How about your cable printing?

A5: Normal we use printing with our company name, and have the neutral printing, also can do the custom printing according to the clients’requirement.

Q6: How about the package of your cable and connector?
